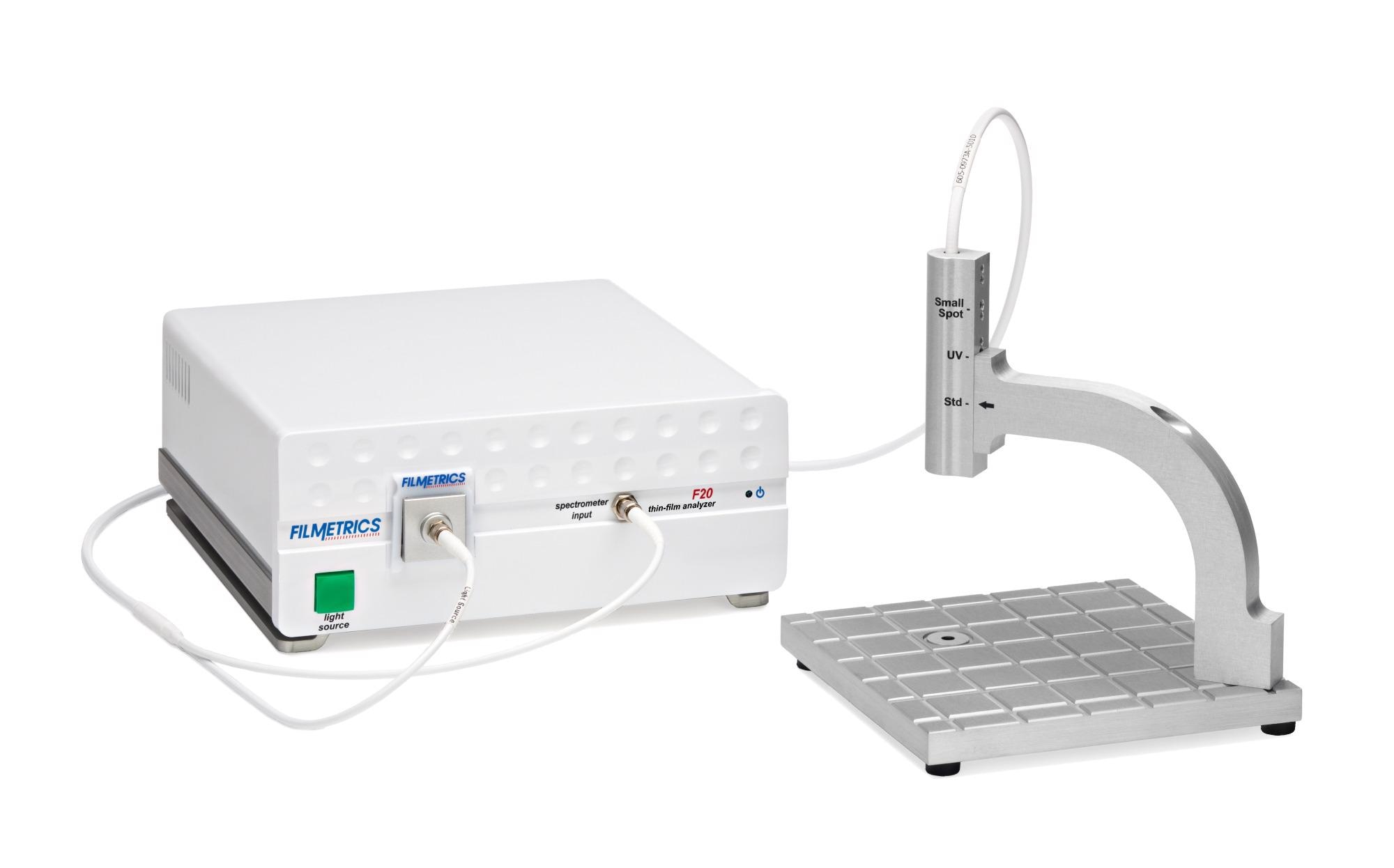

The Filmetrics® F20 benchtop thin-film analyzer delivers accurate measurements of thickness, refractive index, reflectance, and transmittance of various films and coatings. Setup takes minutes and results are available in seconds. Its modular design is adaptable to many applications:
- Single- or multi-layer film stacks
- Freestanding membranes
- Liquid films and air gaps
- Flat or curved surfaces

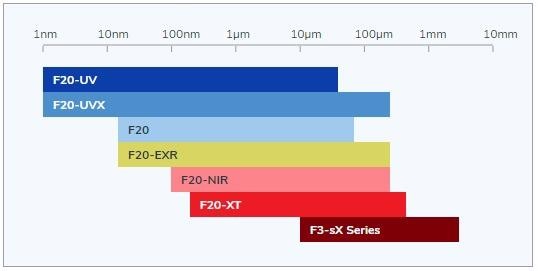

The F20 configuration is typically determined for a specific film thickness range, from the F20-UV and F20-UVX measuring films as thin as 1nm, to the F3-sX measuring films up to 3mm thick.
The F20 may be used for a variety of thin-film types including:
- Semiconductor films (photoresist, process films, dielectrics)
- Display films (OLED, ITO, other TCOs) and glass thickness
- Optical coatings (hardcoat thickness, anti-reflective coatings)
- Biomedical coatings (parylene, medical device coatings)
Key features of the F20 include:
- Film thickness measurements from 1nm to 3mm (depending on configuration)
- Spot size from 10µm to 1.5mm (depending on configuration)
- Supports samples from 1 - 300mm diameter
- Intuitive measurement and analysis software
- Built-in online diagnostics
- 24-hour phone, e-mail, and online support
Optional features for the F20:
- XY10 mapping stage for automated measurement
- SampleCam measurement spot locator
- CP-1 probe for curved surfaces
- SS-Trans-Curved stage for transmittance measurements
- CS-1 platform for quick sample thickness readings
- Mounting kit for your microscope
