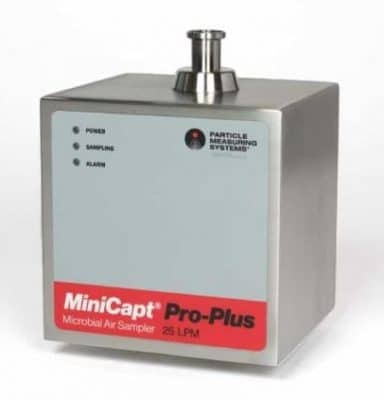

Particle Measuring Systems' (PMS) MiniCapt® Pro Remote Microbial Air Sampler utilizes the latest viable cleanroom monitoring technologies into one instrument to customize cleanroom and aseptic area microbial monitoring in accordance with ISO Class 5/7, GMP Grade A/B, and for use in background areas that are monitored by a Facility Monitoring System (FMS).
This all-in-one remote monitoring system completely adheres to the EU GMP Annex 1 regulatory stipulations and the operational requirements of the pharmaceutical manufacturing sector, where versatile connectivity and adherence are of value.
The MiniCapt Pro is intentionally designed to be mounted in tight spaces and has a variety of features. It has a small footprint and offers users versatile installation options with an internal pump, analog and digital I/O, WiFi, and Power over Ethernet (PoE) capabilities. The external 316 L stainless steel enclosure safeguards the unit during cleaning tasks and from harsh surroundings.

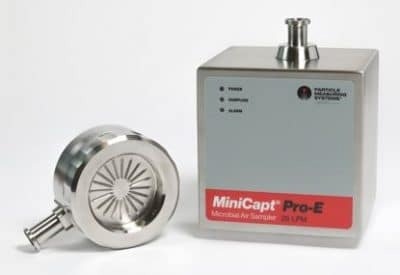

The MiniCapt Pro comprises a number of settle plate options and was engineered for seamless use with the BioCapt Single-Use and the BioCapt stainless steel impactor. The MiniCapt Pro comes in two models and flowrates for increased customization.
The MiniCapt Pro can be completely incorporated with Particle Measuring Systems’ FacilityPro® system or other FMS via MODBUS communications.
Features

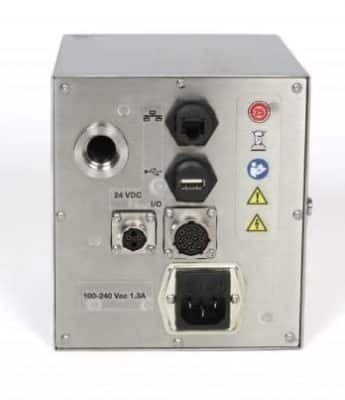

- User-fixed power options: PoE, DC, or AC power

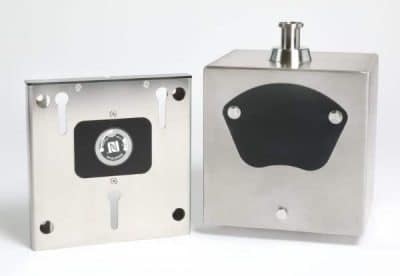

- Fast disconnect mounting bracket with optional NFC configuration for easy installation
- EU GMP Annex 1 and ISO 14698-1 compliant
- Adjustable height and diameter mechanism for versatile agar dish use with BioCapt®, it is also compatible with BioCapt® Single-Use
- PoE option for uncomplicated installation and communications
- HEPA-filtered blower options remove environmental contamination from instrument operation
- Advanced and user-friendly data and sample configuration management by combining with the FacilityPro® system or other prevalent monitoring devices
- WiFi capability
- Digital I/O
Benefits
Fully Compliant
- ISO, EU GMP, EP, USP, and JP compliant
- Can be used with BioCapt Single-Use for a validated solution
- Data integrity following 21 CFR 11 and other latest data management necessities
Precision (BioCapt® and BioCapt® Single-Use)
- Adheres to ISO 14698-1
- Sensitivity: 1 CFU
- Instant and easy identification of false-positive outcomes
- Feller correction of only above 57 CFU is required, and a maximum of 3% overlap deviations at 200 CFU
- Radial slit design guarantees ideal recovery for microorganisms during sampling
Security
- No environmental contamination of critical control points with optional HEPA-filtered inlet and exhaust air
- Remote Sampling to ensure low user intervention and minimized false contamination
- Single-Use Sampling method with BioCapt® Single-Use
Applications
- Compliance with EU GMP Annex 1 environmental monitoring regulations
- Microbial air sampling in aseptic manufacturing areas (e.g., cleanrooms, isolators, RABS) according to regulations
- Microbial air sampling of crucial control points in cleanrooms and associated controlled environments
Available Accessories
Isolator Kit
Image Credit: Particle Measuring Systems
The Isolator Kit is an add-on adapter kit that allows the MiniCapt Remote Microbial Sampler to remotely sample inside aseptic locations where the placement of the MiniCapt sampler is unfeasible because of space limitations or other restrictions.
Remote Sampling Top (MCR)
Image Credit: Particle Measuring Systems
A remote sampling top is available for the MiniCapt Remote Microbial Sampler.
