The most potent micro-analysis tool from CRAIC Technologies is the 2030PV PRO™ microspectrophotometer. Built to match the precise needs of the user, it includes the most recent technology developments in optics, spectroscopy, electronics, and software to provide exceptional performance, unique capabilities, and unparalleled speed. This device is at the cutting edge of UV-visible-NIR microspectroscopy, featuring the user-friendliness that CRAIC equipment is renowned for.
The user can measure UV-visible-NIR range transmission, absorbance, reflectance, polarization, fluorescence and photoluminescent microspectra™ of sample areas smaller than a micron across with the 2030PV PRO™ microspectrophotometer, which integrates the most recent technological advancements.
The thickness of color spaces and thin films can be determined. High-resolution digital imaging in the near-infrared, color, and deep UV can also be used to view the sample while microspectra™ is being captured.
The 2030PV PRO™ system’s ease of use features, which range from software to automation to ergonomic instrument upgrades, increase its power.
The 2030PV PRO™ microspectrophotometer is easy to use, spectral data is unmatched, and the measurements are non-destructive.
2030PV Microspectrophotometer Introduction
Video Credit: CRAIC Technologies
Key Features
The 2030PV PRO™: superior UV-visible-NIR spectra and images of microscopic samples.
- Range of spectrum: 200–2500 nm
- Transmission imaging
- Absorbance microspectroscopy
- Reflectance imaging
- Reflectance microspectroscopy
- Fluorescence micro-imaging
- Fluorescence microspectroscopy
- Raman microspectroscopy
- Photoluminescence imaging
- Photoluminescence microspectroscopy
- Polarization microscale imaging
- Polarization microspectroscopy
- Thin film thickness measurements
- Refractive index measurements of microscopic particles
- Colorimetry of microscopic specimens
- Fully manual or automated operation
- Scorpii™ advanced illumination system
- Featuring lightblades™ technology
- Precision control of sample temperature
- Micron-scale calibrated and variable sample measurement areas
- Color, NIR, and UV digital imaging
- Lambdafire™ spectroscopy and imaging control and analysis software
- Specialized software modules including image analysis, spectral databasing, statistical analysis, spectra mapping, and more
- Simple to operate and maintain
- From the microspectroscopy specialists
UV-vis-NIR Microspectroscopy
Cutting-Edge Microspectroscopy From the Leaders
A fully integrated microspectrometer with a spectral range that extends from near-infrared to deep ultraviolet. Quick and precise measurements can be obtained by directly and simultaneously imaging the sample and sampling aperture.
With SampleSafe™, Lightblades™, and Scorpii™ technologies, the 2030PV PRO™ can measure transmission, reflectance, Raman, polarization, fluorescence, and PL spectra of even sub-micron samples.
The only recognized source of NIST traceable microspectrometer standards is CRAIC Technologies.
Image Credit: CRAIC Technologies

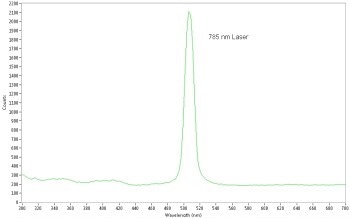

Raman Microspectroscopy
The Power of Raman Microspectroscopy

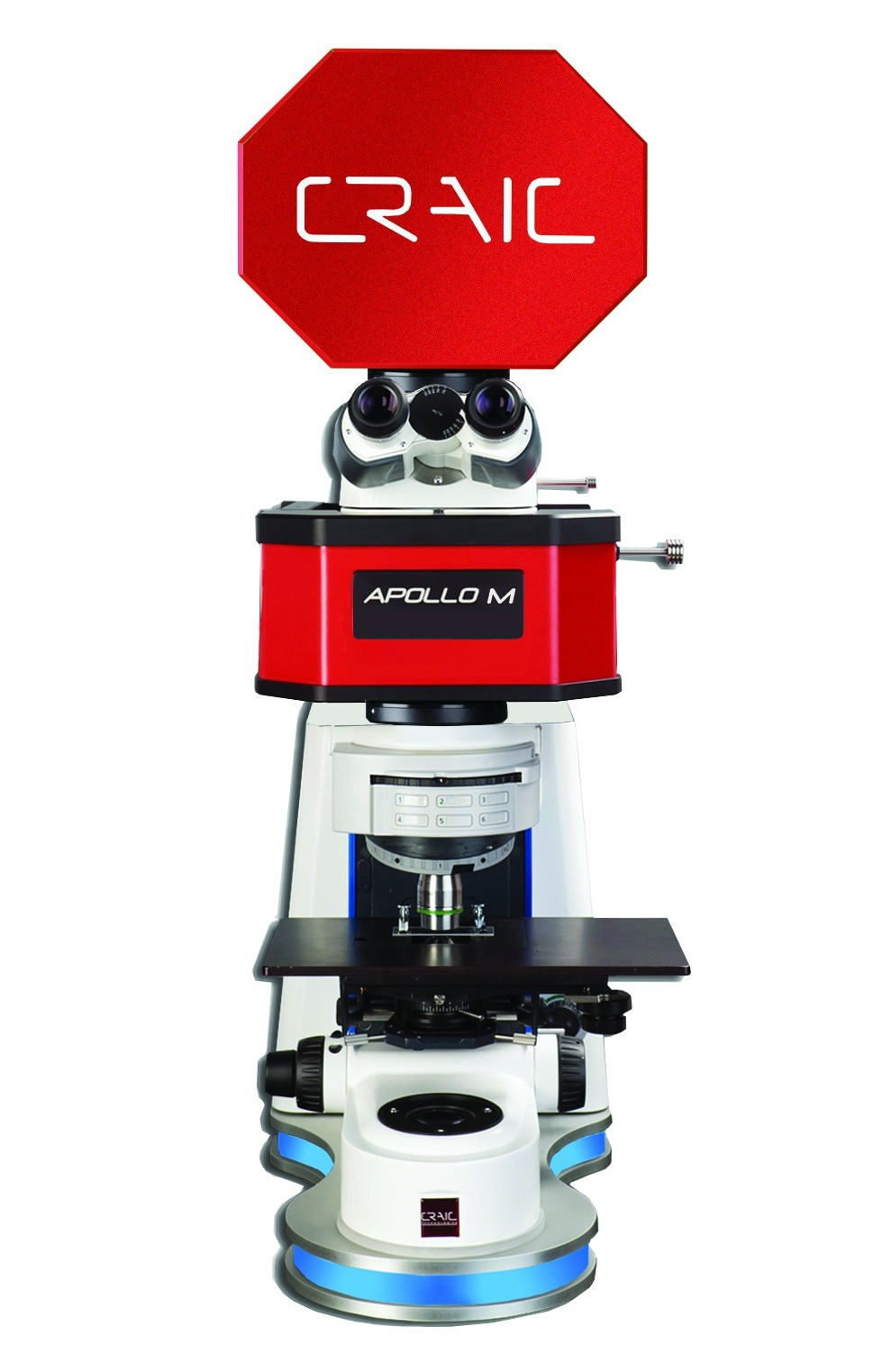

The 2030PV PRO™ can perform Raman spectroscopy on microscopic samples when equipped with the CRAIC Apollo™ Raman spectrometer module. To obtain high-quality Raman spectra of materials, the system comes with an extensive selection of lasers, Lightblades™ Raman spectrometers, and interface optics.
Image Credit: CRAIC Technologies
Photoluminescence
High-Sensitivity Emission Microspectroscopy and Imaging
The 2030PV PRO™ can be set up for images of microscopic samples, as well as fluorescence and luminescence spectra. The 2030PV PRO™, equipped with Lightblades™ technology, is a powerful instrument for microfluorometry in materials sciences, biology, geology, and more. With excitation ranges spanning from deep UV to near-infrared, the 2030PV PRO™ can measure the emission in the same range.
Image Credit: CRAIC Technologies
Polarization
Microspectroscopy and Imaging of UV-Visible-NIR Polarization
Images of microscopic samples, as well as fluorescence and luminescence spectra, can be obtained using the 2030PV PRO™. The polarization microspectroscopy capabilities of the 2030PV PRO™ are unparalleled. It is equipped with Lightblades™ technology and features a spectral range from UV to NIR.
The spectra and images of birefringent and other sample types with polarization features can be easily and rapidly obtained using this sophisticated system.

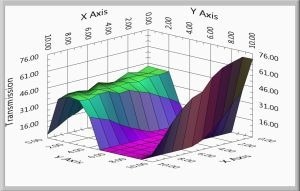

Spectral Surface Mapping
5D Spectral Surface Mapping™
Combines software and hardware to enable automated spectral evaluation and 5D mapping of samples with microscopic spatial resolution. 5D maps of a sample’s absorbance, transmission, reflectance, fluorescence, emission, time-resolved, and Raman spectra can be generated.
Image Credit: CRAIC Technologies
UV-vis-NIR Microimaging
Superior Image Quality from the UV to the NIR
A unique UV-visible-NIR microscope with research-grade optics is included with the 2030PV PRO™. The 2030PV PRO™ boasts advanced imaging software, with high-resolution digital imaging for color, UV, and NIR areas. This enables the collection of real-time data and image capture of samples using transmission, reflectance, polarization, and fluorescence microscopy rapidly and simply.
Image Credit: CRAIC Technologies

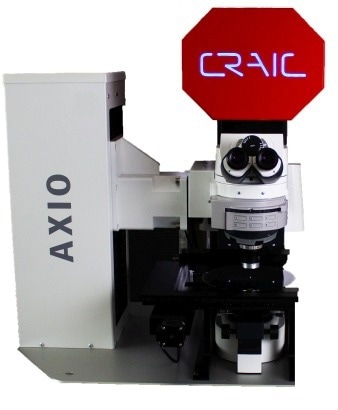

2030XL PRO™ for Large Samples
Spectra of Large Samples With Micro Spatial Resolution
With the 2030XL PRO™ microspectrophotometer, users can obtain spectra, images, and film thickness measurements of microscopic features of large-scale samples. "XL" stands for "extra large." This instrument was thus built for extra-large sample types.
Image Credit: CRAIC Technologies
Applications
- Semiconductor Film Thickness
- MEMS devices
- Nanotechnology
- Surface Plasmon Resonance
- Photonic Bandgap Crystals
- Process Impurity Detection
- Protein Crystals
- Forensic Science
- Drug Chemistry
- Questioned Documents
- OLED’s
- Flat Panel Color Masks
- Combinatorial Chemistry
