Utilizing Minus K's patented breakthrough technology, the Compact Tabletop (CT-2) offers the best performance available in a 2.7-inch-tall isolation platform. Better horizontal performance and more payload ranges for heavier instruments are features of this system.
This fully passive mechanical isolator performs 10–100 times better than a full-size air table. It accomplishes this without the use of air or electricity.
This incredibly user-friendly vibration isolation platform offers the company’s signature 0.5 Hz vertical natural frequency and approximately 1.5 Hz horizontal natural frequency. It requires just two adjustments. The CT -2 is perfect for all kinds of benchtop microscopes.
This is the thinnest, most portable, and easiest-to-use isolator that has ever been made available with this kind of performance.
Download the Brochure for More Information

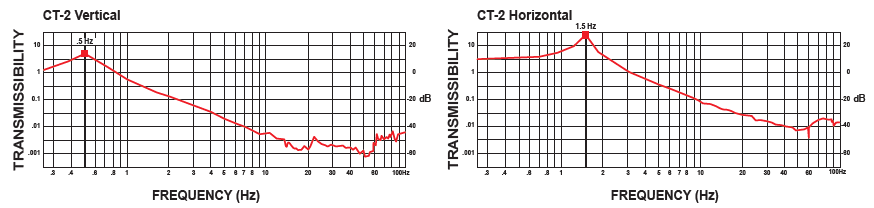

Typical Performance Curves:
The vertical curve above demonstrates the vertical 1/2 Hz performance of the CT-2. Horizontally, the CT-2 offers natural frequencies as low as 1.5 Hz, much better than typical air tables.
Source: Minus K Technology, Inc.
| . |
| Weight: Approximately 30 lbs (16 kg) |
| Dimension: 18” W x 20” D x 2.7” H (457 mm W x 508 mm D x 68.6 mm H) |
| Approximate payload weight range |
| Model |
Payload Range |
| 30CT-2 |
18 – 31 lb. (8.2 – 14 kg.) |
| 60CT-2 |
42 – 70 lb. (19 – 31.7 kg.) |
| 100CT-2 |
68 – 104 lb. (31 – 47 kg.) |
| 150CT-2 |
112 – 158 lb. (51 – 71.5 kg.) |
| 200CT-2 |
155 – 210 lb. (70.5 – 95.2 kg.) |
| 250CT-2 |
205 – 252 lb. (93 – 114.3 kg.) |
| Performance |
- Horizontal frequencies are weight-dependent.
- Horizontal frequency of ~1.5 Hz is achieved at or near the upper limits of the payload range.
- At the lower payload weights the horizontal frequency will increase.
- Vertical frequency is tunable to 0.5 Hz throughout the payload range.
|
