May 31 2013
Instead of through pigments, these ‘polymer opals’ get their colour from their internal structure alone, resulting in pure colour which does not run or fade. The materials could be used to replace the toxic dyes used in the textile industry, or as a security application, making banknotes harder to forge. Additionally, the thin, flexible material changes colour when force is exerted on it, which could have potential use in sensing applications by indicating the amount of strain placed on the material.
A synthetic material which mimics the brightest and most vivid colours in nature, and changes colour when twisted or stretched, has been developed by researchers at the University of Cambridge, and could have important applications in the security, textile and sensing industries.
The most intense colours in nature - such as those in butterfly wings, peacock feathers and opals – result from structural colour. While most of nature gets its colour through pigments, items displaying structural colour reflect light very strongly at certain wavelengths, resulting in colours which do not fade over time.
In collaboration with the DKI (now Fraunhofer Institute for Structural Durability and System Reliability) in Germany, researchers from the University of Cambridge have developed a synthetic material which has the same intensity of colour as a hard opal, but in a thin, flexible film.
Naturally-occurring opals are formed of silica spheres suspended in water. As the water evaporates, the spheres settle into layers, resulting in a hard, shiny stone. The polymer opals are formed using a similar principle, but instead of silica, they are constructed of spherical nanoparticles bonded to a rubber-like outer shell. When the nanoparticles are bent around a curve, they are pushed into the correct position to make structural colour possible. The shell material forms an elastic matrix and the hard spheres become ordered into a durable, impact-resistant photonic crystal.
“Unlike natural opals, which appear multi-coloured as a result of silica spheres not settling in identical layers, the polymer opals consist of one preferred layer structure and so have a uniform colour,” said Professor Jeremy Baumberg of the Nanophotonics Group at the University’s Cavendish Laboratory, who is leading the development of the material.
Like natural opals, the internal structure of polymer opals causes diffraction of light, resulting in strong structural colour. The exact colour of the material is determined by the size of the spheres. And since the material has a rubbery consistency, when it is twisted and stretched, the spacing between spheres changes, changing the colour of the material. When stretched, the material shifts into the blue range of the spectrum, and when compressed, the colour shifts towards red. When released, the material will return to its original colour.

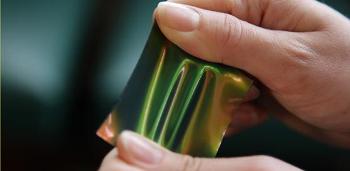

Polymer Opals
The material could be used in security printing in order to detect fraud. Polymer opals can produce much brighter colour at lower cost than the holograms normally seen on banknotes, and would be more difficult to forge.
The technology could also have important uses in the textile industry. “The World Bank estimates that between 17 and 20 per cent of industrial waste water comes from the textile industry, which uses highly toxic chemicals to produce colour,” said Professor Baumberg. “So exploring other avenues to make colour is something worth investigating.” The polymer opals can be bonded to a polyurethane layer and then onto any fabric. The material can be cut, laminated, welded, stitched, etched, embossed and perforated.
The researchers have recently developed a new method of constructing the material, which offers localised control and potentially different colours in the same material by creating the structure only over defined areas. In the new work, electric fields in a print head are used to line the nanoparticles up forming the opal, and are fixed in position with UV light. The researchers have shown that different colours can be printed from a single ink by changing this electric field strength to change the lattice spacing.
The results were published earlier this month in the journal Advanced Engineering Materials.
Cambridge Enterprise, the University’s commercialisation arm, is currently looking for a manufacturing partner to further develop the technology and take polymer opal films to market.
