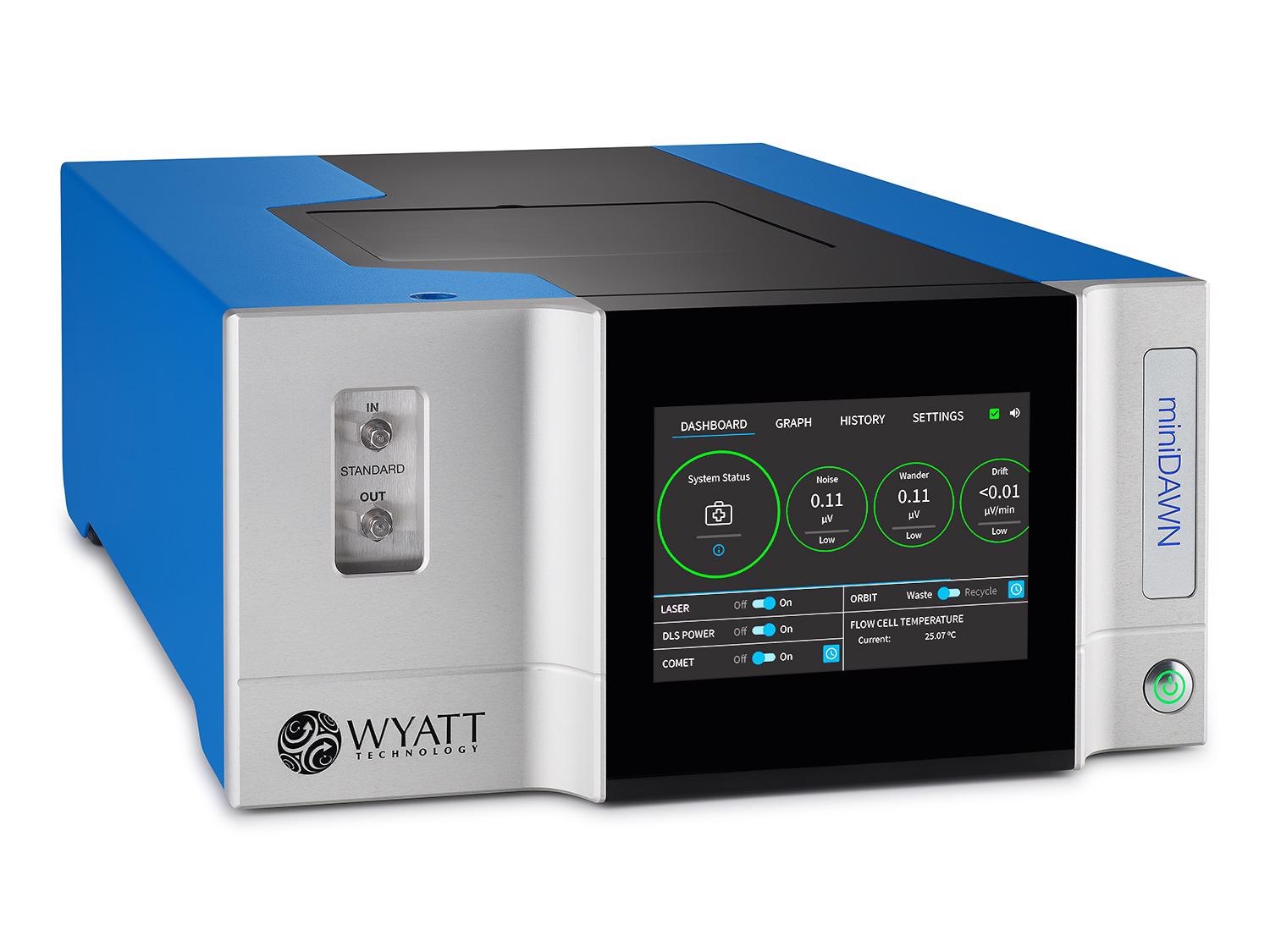

miniDAWN Multi-Angle Light Scattering Detector

The miniDAWN^® multi-angle light scattering (MALS) detector connects to most HPLC, GPC, FPLC or FFF separation systems to determine absolute molecular weight, size, and conformation of peptides, proteins, small polymers and nanoparticles, in solution, without reference to calibration standards.

Eliminate column calibration and idealized assumptions, gain certainty with first-principles MALS analysis. The miniDAWN provides high sensitivity, a wide range of measurement, productivity and versatility second only to that of the DAWN^® MALS detector.

Features

• Sensitivity in SEC-MALS mode: 25 ng of 100 kDa polystyrene in THF, or 500 ng of BSA in PBS, using 7.8 x 300 mm SEC columns
• Range of molar mass: 200 Da to 10 MDa (may vary with molecular composition or solvent)
• Range of rms radius R_g : 10 nm to 50 nm
• Integrated ultrasonic cell cleaning module
• DLS: optional WyattQELS™ embedded dynamic light scattering detector for particle sizes from 0.3 nm to 50 nm (R_h)
• Touch-panel display for immediate access to data, diagnostics and settings
• Serviceability: fully field-serviceable with extended self-diagnosis of field-replaceable flow cell and hardware modules
• Software: ASTRA^® chromatography software provides comprehensive analyses and user-friendly features including HPLC control, “One-click MW” and user-designed reports. Optional 21CFR11 support for GMP.

Applications

• Proteins: absolute molar mass, size and stoichiometry of monomers, oligomers, complexes, aggregates and fragments.
• Glycoproteins, detergent-solubilized membrane proteins, PEGylated proteins, protein-polysaccharide and protein-DNA complexes; heme-containing proteins that absorb laser light
• Protein-protein and protein-nucleic acid interactions
• Polymers: absolute molar mass and size (distributions and moments), conformation, branching and second virial coefficient
• Linear or branched polymers, co-polymers
• Nanoparticles: size distributions, structure, encapsulation and concentration of vesicles, dendrimers, small viruses, VLPs, and more
• Most aqueous and organic solvents
