Micromeritics AutoPore V Series Porosimeters

Need more information?

Let us help you with your inquiries, brochures and pricing requirements

Micromeritics Instrument Corporation logo.

AutoPore V is an industry-leading device that sets a new standard in operating safety.

  • Capability to quantify pore sizes ranging from as small as 3 nm to as large as 1100 µm
  • High-resolution is available for mesoporous and macroporous materials, enabling tighter quality control and offering comprehensive data for research, for both extrusion and intrusion
  • The new modifications are aimed at enhancing operator safety
  • Multiple configurations are available to allow the instrument to be tailored to the demands of the user in terms of the number of analysis ports as well as the operating pressure range
  • Multiple analysis modes are offered to give both fast and detailed analyses, with the ability to prioritize speed or resolution as desired
  • Configurable reporting options to make the most of the data collected
  • Compliant with ASTM Test Methods D4284, D4404, and D6761, as well as ISO 15901-1 and USP <267>

Description

Class Leading, Proven Performance

Leading the class with proven performance, mercury porosimetry analysis relies on the intrusion of mercury into a porous structure under tightly controlled pressures. Beyond delivering speed, precision, and an extensive measurement range, this technique enables the calculation of various sample properties, including pore size distributions, total pore volume, total pore surface area, median pore diameter, and sample densities (both bulk and skeletal).

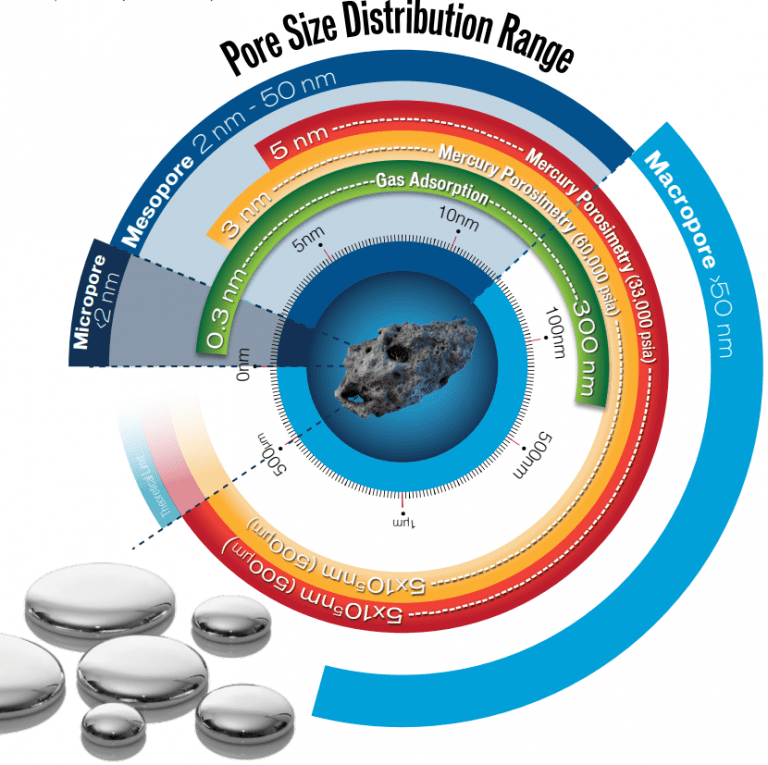

The AutoPore V Series Mercury Porosimeters can assess a wider pore size distribution more quickly and accurately than alternative techniques. Along with improved safety features, this instrument offers new options for data reduction and reporting that offer more information regarding the material’s fluid transport properties and pore shape.

Features and Benefits

  • Facilitates rapid and detailed intrusion and extrusion analyses across a diverse range of pore sizes
  • Innovative safety enhancements that set a new standard in operator safety
  • Nineteen standard penetrometer sizes and configurations that cater to the analysis of various sample sizes and shapes
  • Has user-defined advanced reporting capabilities through python scripts
  • Operates in scanning and equilibration modes, allowing for either rapid or more detailed analyses, respectively
  • MicroActive software enables swift adjustment of reporting ranges

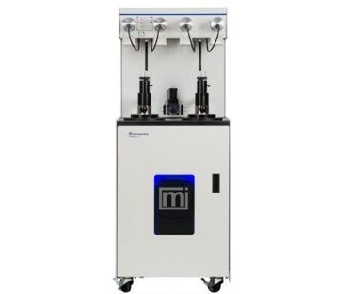

AutoPore V Mercury Intrusion Porosimeter



Micromeritics AutoPore V Series Porosimeters

Image Credit: Micromeritics Instrument Corporation

Specifications

Source: Micromeritics Instrument Corporation

Electrical
Voltage 100/120/220/240 VAC ± 10 %
Frequency 50 or 60 Hz
Power 500 VA maximum
Gas
Nitrogen or other clean, dry gas at 50 psig (345 kPa)
High-Pressure Model 9600 and 9605
Measurement From atmospheric pressure to 33,000 psia
Resolution 0.165 psia from 3,300 psia to 33,000 psia
Transducer Accuracy ±0 .1 % of full scale (transducer manufacturer’s specifications)
Transducer Hysteresis 0.05 % of full scale
Pore Diameter Range 6 to 0.005 μm
Servo Control Precision 0.5 % of target, min 5 psia, no overshoot
High-Pressure Model 9610 and 9620
Measurement From atmospheric pressure to 60,000 psia
Resolution 0.03 psia from atmospheric pressure to 60,000 psia
Transducer Accuracy ± 0.1 % of full scale (transducer manufacturer’s specifications)
Transducer Hysteresis 0.05 % of full scale
Pore Diameter Range 6 to 0.003 μm
Servo Control Precision 0. 5% of target, min 5 psia, no overshoot
Intrusion
Resolution Better than 0.1 all
Accuracy ± 1 % of maximum penetrometer stem volume
Low Pressure All Models
Measurement 0.2 to 50 psia (345 kPa)
Resolution 0.00025 psi
Pore Diameter Range 1100 to 3.6 μm
Transducer Accuracy ± 1 % of full scale (transducer manufacturer’s specifications)
Servo Control Precision 1 % of target, min, 0.05 psia, no overshoot

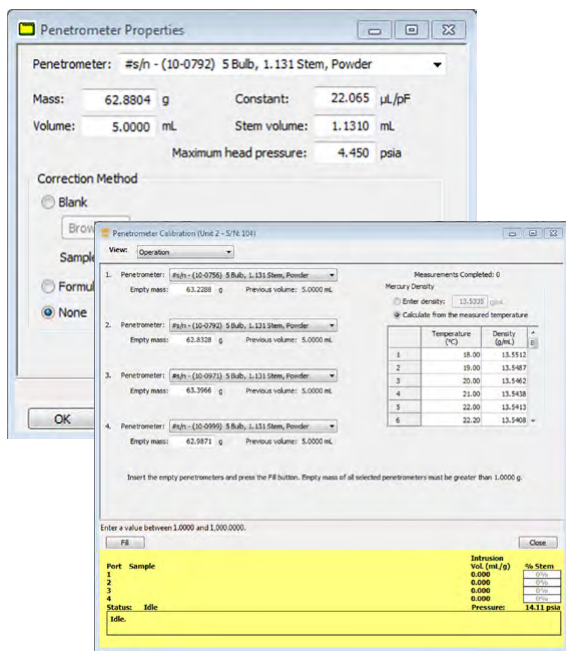

Penetrometers
Stem Intrusion Volumes 0.38, 1.1, 1.7, 3.1, and 3.9 cc
Sample Size Maximum: a cylinder 2.54 cm diameter × 2.54 cm long (1 in. diameter × 1 in. long)
Physical
Height 143 cm (56.25 in.)
Width 54.3 cm (21.38 in.)
Depth 78 cm (30.75 in.)
Weight 250 kg (550 lb)



Technology

Operational Advantages

  • Can measure pore diameters within the range of 0.003 to 1100 µm, with calculations based on an initial filling pressure of 0.2 psia (0.00128 MPa).
  • The controlled pressure can incrementally rise in precise 0.05 psia increments, ranging from 0.2 to 50 psia, enabling the collection of detailed data in the macropore region.
  • The high-resolution measurement of intrusion/extrusion volumes at a sub-microliter level provides exceptional precision, facilitating the establishment of more stringent sample specifications, enhancing production processes, and generating high-quality research data.
  • Functions in scanning and time- or rate-of-intrusion modes.

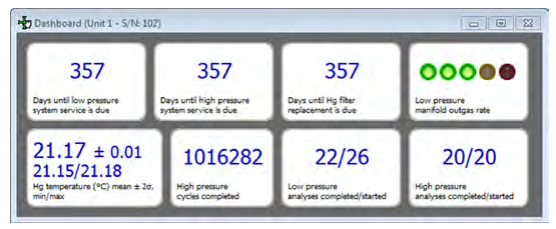

  • Real-time diagnostics offer insights into a problem before it reaches a critical stage or negatively affects your analytical outcomes.
  • Gathers data at an exceptionally high resolution, surpassing 0.1 µL for both mercury intrusion and extrusion volumes.
  • Enhanced linear motion for sealing high-pressure chambers.

Design Advantages

  • Enhanced safety features minimize the potential for mercury spills and operator exposure.
  • Equipped with four ports for low pressure and two ports for high pressure, enhancing sample throughput.
  • Available in models with pressures of 33,000 psia or 60,000 psia.
  • Users can opt for automatic, differential, or manual baseline correction routines to enhance accuracy by compensating for compressibility and thermal effects caused by high pressure.
  • A quick-scan mode facilitates a continuous pressure increase approximating equilibrium, ensuring faster screening.
  • This system features a low-noise, high-pressure generation mechanism.
  • An integrated temperature sensor enables the automatic calculation of mercury density used for penetrometer calibrations.
  • The system offers a choice of pressure ramping methods, allowing users to select scanning mode for high-speed or on-demand results, or equilibration mode for more precise results with greater detail.
  • The system also compensates for material compression during high-pressure analysis.

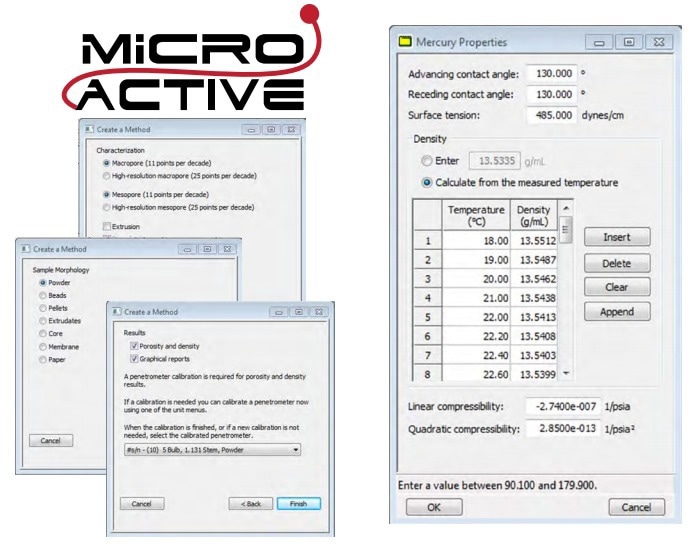

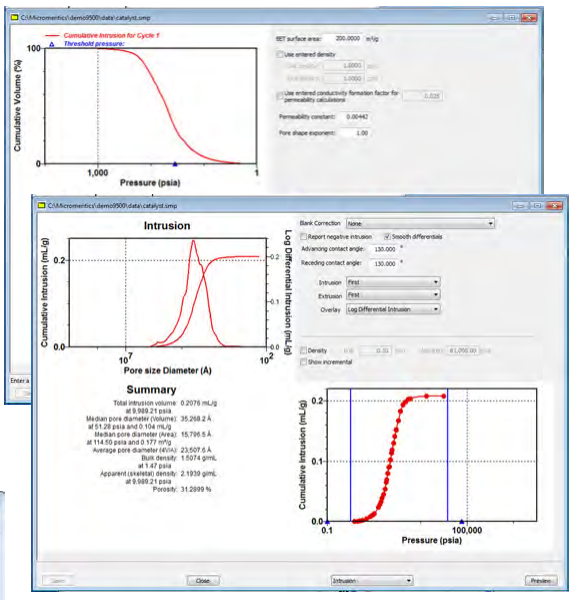

  • The MicroActive software allows users to manipulate data, define custom reports, and attain analytical results rapidly.

A New Benchmark for Operational Safety

Micromeritics AutoPore V Series Porosimeters

Image Credit: Micromeritics Instrument Corporation

Configurations

Four Models

The AutoPore V is offered in four models designed to align with the specific requirements of individual quality assurance and research laboratories.

Source: Micromeritics Instrument Corporation

  9605 9620 9600 9610
Low Pressure 4 ports 4 ports 2 ports 2 ports
High Pressure 2 ports @ 33,000 psia 2 ports @ 60,000 psia 1 port @ 33,000 psia 1 port @ 60,000 psia



Penetrometers

Partial List

Source: Micromeritics Instrument Corporation

Model# Size Stem Volume Medium Typical Use
01 15 cc 0.392 Solid refractories, low-porosity solid rocks/cores, low-porosity solid polymers
02 15 cc 0.392 Powder low-porosity powders, gravel, irregular rock shapes
03 15 cc 1.131 Solid medium-porosity rocks/cores, solid materials
04 15 cc 1.131 Powder medium-porosity rocks, solid materials, fumed silica
07 5 cc 0.392 Solid paper, flexible polymer/membrane sheets, pharma tablets
08 5 cc 0.392 Powder silicates, catalysts, powders (general use), pharma powders
09 5 cc 1.131 Solid medium/high-porosity sheet-form materials (paper, polymer, etc.), pharma tablets
10 5 cc 1.131 Powder silica-alumina, silicates, zeolites, catalysts, powders (general use), pharma powders
14 3 cc 0.412 Powder powders (general use), materials with low quantity available
24 15 cc 3.263 Solid high-porosity rock/cores, low-density/high-porosity foams
25 15 cc 4.185 Solid high-porosity material with large volume



Accessories

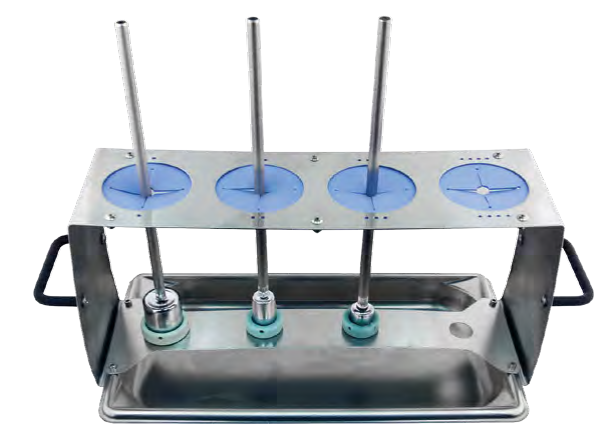

Penetrometer Rack

Micromeritics AutoPore V Series Porosimeters

Image Credit: Micromeritics Instrument Corporation

Securely store and transport penetrometers to avoid breakage and prevent unnecessary replacements.

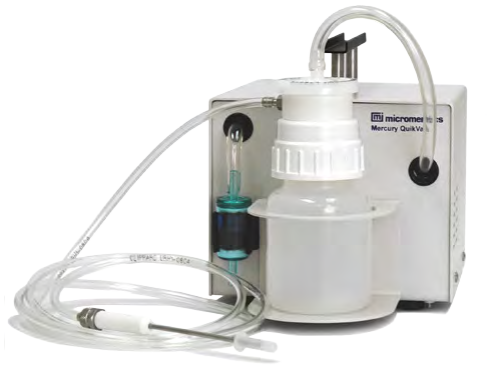

Mercury QuikVac

Micromeritics AutoPore V Series Porosimeters

Image Credit: Micromeritics Instrument Corporation

Mercury QuikVac is an excellent low-cost method for quickly containing mercury spills. The device is designed to be specifically useful in collecting elusive mercury droplets and small mercury-contaminated particulate matter.

Mercury is collected in a 250-mL recovery vessel and a replaceable 0.3 – 0.5 micron activated carbon filter assures that the device exhausts clean, safe air.

Consumables and Supplies

Source: Micromeritics Instrument Corporation

Part Number Description Comments
950-61701-00 Penetrometer Set, 15 cm3 Solid, 0.366 cm3 intrusion volume Includes 1 each penetrometer 920-61701-01 and closure set 950-25832-00
950-61702-00 Penetrometer Set, 15 cm3 Powder, 0.366 cm3 intrusion volume Includes 1 each penetrometer 920-61702-01 and closure set 950-25832-00
950-61703-00 Penetrometer Set, 15 cm3 Solid, 1.06 cm3 intrusion volume Includes 1 each penetrometer 920-61703-01 and closure set 950-25832-00
950-61704-00 Penetrometer Set, 15 cm3 Powder, 1.06 cm3 intrusion volume Includes 1 each penetrometer 920-61704-01 and closure set 950-25832-00
950-61705-00 Penetrometer Set, 15 cm3 Solid, 1.72 cm3 intrusion volume Includes 1 each penetrometer 920-61705-01 and closure set 950-25832-00
950-61706-00 Penetrometer Set, 15 cm3 Powder, 1.72 cm3 intrusion volume Includes 1 each penetrometer 920-61706-01 and closure set 950-25832-00
950-61707-00 Penetrometer Set, 5 cm3 Solid, 0.366 cm3 intrusion volume Includes 1 each penetrometer 920-61707-01 and closure set 950-25831-00
950-61708-00 Penetrometer Set, 5 cm3 Powder, 0.366 cm3 intrusion volume Includes 1 each penetrometer 920-61708-01 and closure set 950-25831-00
950-61709-00 Penetrometer Set, 5 cm3 Solid, 1.06 cm3 intrusion volume Includes 1 each penetrometer 920-61709-01 and closure set 950-25831-00
950-61710-00 Penetrometer Set, 5 cm3 Powder, 1.06 cm3 intrusion volume Includes 1 each penetrometer 920-61710-01 and closure set 950-25831-00
950-61711-00 Penetrometer Set, 5 cm3 Solid, 1.72 cm3 intrusion volume Includes 1 each penetrometer 920-61711-01 and closure set 950-25831-00
950-61712-00 Penetrometer Set, 5 cm3 Powder, 1.72 cm3 intrusion volume Includes 1 each penetrometer 920-61712-01 and closure set 950-25831-00
950-61713-00 Penetrometer Set, 3 cm3 Solid, 0.387 cm3 intrusion volume Includes 1 each penetrometer 920-61713-01 and closure set 950-25831-00
950-61714-00 Penetrometer Set, 3 cm3 Powder, 0.387 cm3 intrusion volume Includes 1 each penetrometer 920-61714-01 and closure set 950-25831-00
950-61715-00 Penetrometer Set, 3 cm3 Solid, 1.12 cm3 intrusion volume Includes 1 each penetrometer 920-61715-01 and closure set 950-25831-00
950-61716-00 Penetrometer Set, 3 cm3 Powder, 1.12 cm3 intrusion volume Includes 1 each penetrometer 920-61716-01 and closure set 950-25831-00
950-61720-00 Penetrometer Set, 3 cm3 Solid, 0.90 cm3 intrusion volume Includes 1 each penetrometer 920-61720-01 and closure set 950-25831-00
950-61724-00 Penetrometer Set, 15 cm3 Solid, 3.01 cm3 intrusion volume Includes 1 each penetrometer 920-61724-01 and closure set 950-25832-00
950-61725-00 Penetrometer Set, 15 cm3 Solid, 3.86 cm3 intrusion volume Includes 1 each penetrometer 920-61725-01 and closure set 950-25832-00
920-61701-01 Penetrometer, 15 cm3 Solid, 0.366 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25832-00
920-61702-01 Penetrometer, 15 cm3 Powder, 0.366 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25832-00
920-61703-01 Penetrometer, 15 cm3 Solid, 1.06 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25832-00
920-61704-01 Penetrometer, 15 cm3 Powder, 1.06 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25832-00
920-61705-01 Penetrometer, 15 cm3 Solid, 1.72 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25832-00
920-61706-01 Penetrometer, 15 cm3 Powder, 1.72 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25832-00
920-61707-01 Penetrometer, 5 cm3 Solid, 0.366 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25831-00
920-61708-01 Penetrometer, 5 cm3 Powder, 0.366 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25831-00
920-61709-01 Penetrometer, 5 cm3 Solid, 1.06 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25831-00
920-61710-01 Penetrometer, 5 cm3 Powder, 1.06 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25831-00
920-61711-01 Penetrometer, 5 cm3 Solid, 1.72 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25831-00
920-61712-01 Penetrometer, 5 cm3 Powder, 1.72 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25831-00
920-61713-01 Penetrometer, 3 cm3 Solid, 0.387 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25831-00
920-61714-01 Penetrometer, 3 cm3 Powder, 0.387 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25831-00
920-61715-01 Penetrometer, 3 cm3 Solid, 1.12 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25831-00
920-61716-01 Penetrometer, 3 cm3 Powder, 1.12 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25831-00
920-61720-01 Penetrometer, 3 cm3 Solid, 0.90 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25831-00
920-61724-01 Penetrometer, 15 cm3 Solid, 3.01 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25832-00
920-61725-01 Penetrometer, 15 cm3 Solid, 3.86 cm3 intrusion volume Penetrometer glassware only; use with closure set 950-25832-00
950-33605-00 Penetrometer Closure Kit for 3cm3 and 5 cm3 Penetrometers Includes six 3 cm3 and 5 cm3 penetrometer closure sets, 950-25831-00, and closure nut holder 950-09802-00 and seal wrench 950-09803-00
950-33606-00 Penetrometer Closure Kit for 15 cm3 Penetrometers Includes six 15 cm3 penetrometer closure sets, 950-25832-00, and closure nut holder 950-09802-00 and seal wrench 950-09803-00
950-25831-00 Closure Set for 3 cm3 and 5 cm3 Penetrometers Includes 1 each closure nut 950-25831-01 and closure nut 950-25831-01 for 3 cm3 and 5 cm3 penetrometers
950-25832-00 Closure Set for 15 cm3 Penetrometers Includes 1 each closure nut 950-25832-01 and closure nut 950-25832-01 for 15 cm3 penetrometers
950-25831-01 Closure Nut for 3 cm3 and 5 cm3 Penetrometers Penetrometer closure nut for all 3 cm3 and 5 cm3 penetrometers
950-25831-02 Closure Seal for 3 cm3 and 5 cm3 Penetrometers Penetrometer closure seal for all 3 cm3 and 5 cm3 penetrometers
950-25832-01 Closure Nut for 15 cm3 Penetrometers Penetrometer closure nut for all 15 cm3 penetrometers
950-25832-02 Closure Seal for 15 cm3 Penetrometers Penetrometer closure seal for all 15 cm3 penetrometers
950-09802-00 Penetrometer Closure Nut Holder Used to hold penetrometer closure nut while tightening before analysis, and while loosening after analysis
950-09803-00 Penetrometer Closure Seal Wrench Used to tighten penetrometer closure seal before analysis, and loosen seal after analysis
950-25831-03 Spacer for 3 cm3 and 5 cm3 Penetrometers Used to properly position penetrometer while in low-pressure port to ensure connection to banana plug-in capacitance detector assembly
942-25863-00 Spacer for 15 cm3 Penetrometers Used to properly position penetrometer while in low-pressure port to ensure connection to banana plug-in capacitance detector assembly
962-25807-00 Penetrometer Safety Enclosure Holds penetrometer securely in place while viewing penetrometer installed into low-pressure port
950-25822-00 Penetrometer Weighing Support Holds penetrometer assembly while weighing
950-25820-00 Rack for Penetrometer Storage Securely holds empty penetrometers to help prevent breakage when not in use
962-25827-00 Rack for Filled Penetrometers Holds filled penetrometers upright to facilitate movement between instrument and balance when determining Assembly Mass
930-54601-00 Cleaning Brush for Penetrometer with 0.4 cm3 Stem Volume Used to clean inside 0.4 cm3 penetrometer stems
930-54602-00 Cleaning Brush for Penetrometer with 1.1 cm3 Stem Volume Used to clean inside 1.1 cm3 penetrometer stems
930-54603-00 Cleaning Brush for Penetrometer with 1.8 cm3, 3.3 cm3, and 4.2 cm3 Stem Volume Used to clean inside 1.8 cm3, 3.3 cm3, and 4.2 cm3 penetrometer stems
Routine Operating Supplies
004-16007-00 Apiezon Type H High Vacuum Grease Used to seal between penetrometer and closure nut
920-16001-00 High-Pressure Fluid, 1 L Used to fill high-pressure chamber during analysis; not used in the hydraulic pump
008-16045-00 Silicone High Vacuum Grease Used to lubricate low-pressure seals; apply small amount to penetrometer stems or low-pressure filler rods
004-16011-00 Hydraulic Pump Oil, Synthetic 15W-50 Grade Used in the hydraulic pump that generates pressure for the high-pressure system; not used in the high-pressure port
004-16004-01 Triple Distilled Mercury Ships as hazardous material; importation is limited by some countries.  Check with Micromeritics' Representative for more details.
942-25823-00 Syringe, 50 mL For adding high-pressure fluid to the chamber, and for removing it from the chamber
962-33601-00 Operating Supplies Includes one Liter of high-pressure fluid 920-16001-00, two unmodified banana plugs 003-21273-00, four modified banana plugs 930-25849-00, valve spanner 004-54039-00, mercury vapor filter 962-27000-00, and a package of 10 mercury vapor detection tubes
962-33602-00 Extended Operating Supplies Includes Apiezon vacuum grease 004-16007-00, two Liters of high pressure fluid 920-16001-00, four unmodified banana plugs 003-21273-00, ten modified banana plugs 930-25849-00, valve spanner 004-54039-00, three mercury vapor filters 962-27000-00, and package of 10 mercury vapor detection tubes 962-29601-00
Routine Maintenance Supplies
003-21273-00 Banana Plug for Capacitance Detector Assemblies, unmodified Replacement banana plugs for low-pressure and high-pressure capacitance detector assemblies
922-09808-00 Banana Plug Tool For removal and replacement of banana plugs for capacitance detector assemblies and high-pressure feedthrough assemblies
920-33616-00 High-Pressure Vessel Maintenance Kit Includes two each backup rings 004-25297-00, high-pressure seals 922-25890-00, O-rings for vent valve 004-25034-00, and modified banana plugs 930-25849-00, as well as six penetrometer contacts 930-25817-00 and instruction sheet
922-33607-00 High-Pressure Chamber Plug Seal Kit Includes two each backup rings 004-25297-00 and high-pressure seals 922-25890-00, as well as an instruction sheet
004-25297-00 Backup Ring for High-Pressure Chamber Plug Seal Replacement high-pressure chamber plug seal backup ring
922-25890-00 High-Pressure Chamber Plug Seal Replacement high-pressure chamber plug seal
004-25034-00 O-ring for High-Pressure Chamber Vent Valve Replacement O-ring for vent valve located on top of the high-pressure chamber
930-25817-00 Penetrometer contact for High-Pressure Chamber Replacement penetrometer contact for high-pressure chamber plug
930-25849-00 Banana Plug for High-Pressure Feedthrough Assemblies, modified Replacement banana plugs for high-pressure feedthrough assemblies in the bottom of the high-pressure ports
962-33002-00 Mercury Reservoir Cap Assembly Replacement cap for mercury reservoir filling port
004-25652-00 O-ring for Mercury Reservoir Cap Replacement O-ring for mercury reservoir filling port
942-25600-00 Cover for Spilled Mercury Containment Dish Replacement cover for mercury spill containment dish
003-51123-00 6.25 Amp Fuse, 3AG Slo-Blo 250 VAC Replacement fuse for 100 to 120-volt installations
003-51134-01 5 Amp Fuse, 5x20 mm Slo-Blo 250 VAC CE Replacement fuse for 220 to 240-volt installations
003-63801-01 Ethernet Cable Replacement Ethernet cable for connection of AutoPore to controlling computer
004-54039-00 Spanner for Solenoid Valves Spanner to facilitate replacement of solenoid valve plungers
930-17801-00 Penetrometer Simulator, 82 pF Penetrometer simulator for use when verifying calibration of capacitance detector system, 82 pF
930-17801-01 Penetrometer Simulator, 150 pF Penetrometer simulator for use when verifying calibration of capacitance detector system, 150 pF
930-17801-05 Penetrometer Simulator, 15 pF Penetrometer simulator for use when verifying calibration of capacitance detector system, 15 pF
Reference Material and Reference Volume Capsules for Operational Verification
004-16822-00 Reference Material for Total Pore Volume and Median Pore Diameter Reference material for operational verification
940-34801-00 Mercury Reference Volume Kit Includes two small capsule assemblies 940-34800-00, 2 large capsule assemblies 940-34800-01, 25 replacement O-rings 004-25646-00, one package each of 8 µm membranes 940-25600-00 and 3 µm membranes 940-25600-01, storage case and instruction manual
940-34800-00 Small Mercury Reference Capsule Assembly Reference volume capsule assembly, nominal 0.24 mL capacity
940-34800-01 Large Mercury Reference Capsule Assembly Reference volume capsule assembly, nominal 0.80 mL capacity
940-14800-00 Reference Capsule Retaining Clip Replacement retaining clip for reference volume capsule assemblies
004-25646-00 Reference Capsule O-ring Replacement O-ring for reference volume capsule assemblies
940-25600-00 Reference Capsule 8 µm Member, Package of 100 Replacement 8 µm membrane for reference volume capsule assemblies
940-25600-01 Reference Capsule 3 µm Member, Package of 100 Replacement 3 µm membrane for reference volume capsule assemblies
Mercury Safety Accessories
090-00000-00 QuikVac Mercury Clean-up Accessory Mercury spill vacuum and containment accessory, capable of holding up to 250 mL of recovered mercury, with replaceable activated charcoal filter
942-33021-00 Exhaust Fan Kit Optional kit to pull fresh air across mercury reservoir and then exhaust it to rear of the instrument; port on rear of instrument needs to be ducted properly to room ventilation system that is capable of handling mercury vapors
962-25859-00 Mercury Vapor Filter Assembly Replacement mercury vapor filter for vacuum pump exhaust
962-29600-00 Mercury Vapor Detection Pump Replacement mercury vapor detection pump for testing environment for mercury vapors using disposable mercury vapor detection tubes
962-29601-00 Mercury Vapor Detection Tube, Package of 10 Replacement mercury vapor detection tubes for use with mercury vapor detection pump
004-32031-00 Low-Pressure Mercury Drip Tray Replacement low-pressure mercury drip tray
Low-Pressure Vacuum System Replacement Items and Supplies
062-62801-11 Vacuum Pump, 100 to 120 VAC Replacement vacuum pump for evacuation of low-pressure system, for 100 to 120 VAC installations
062-25801-23 Vacuum Pump, 220 to 240 VAC Replacement vacuum pump for evacuation of low-pressure system, for 220 to 240 VAC installations
004-27040-00 Vacuum Pump Exhaust Filter Replacement exhaust filter for low-pressure vacuum pump
004-16003-01 Vacuum Pump Oil, 1L Vacuum oil for low-pressure vacuum pump
004-25630-00 Centering Ring NW 16 Replacement centering ring for connection to vacuum pump exhaust port
004-25509-00 Clamp NW 10/16 Replacement clamp for connection to vacuum pump exhaust port
Gas Supply Accessories
004-62200-58 Gas Regulator, 2-stage 100 psig outlet, CGA 580 gas cylinder fitting Regulator for compressed gas supply to low-pressure system
230-02001-00 Gas Inlet Line, 1/8 inch OD x 6 feet L Gas inlet line for compressed gas supply to low-pressure system
004-25549-00 Reducing Union, 1/4 inch to 1/8 inch Reducing union to connect gas inlet line 230-02001-00 to gas regulator 004-62200-58
004-33601-00 Two-outlet Expansion Kit for Gas Regulator Expansion kit to allow use of one gas cylinder for multiple instruments
004-33602-00 Pressure Relief Kit for Gas Regulator Used to prevent over-pressurization of gas regulator outlet
Software and Operator's Manual
962-20800-00 AutoPore V Software Latest version of AutoPore V operating software
962-42800-00 AutoPore V Operator's Manual Printed AutoPore Operator's Manual, with binder



Applications

Pharmaceuticals

Porosity and surface area are pivotal factors in the purification, processing, blending, tableting, and packaging of pharmaceutical products. They also impact a drug’s shelf life, dissolution rate, and bioavailability.

Ceramics

Pore area and porosity are influential in the curing and bonding of greenware, affecting the strength, texture, appearance, and density of finished ceramic goods.

Adsorbents

Understanding pore area, total pore volume, and pore size distribution is crucial for the quality control of industrial adsorbents and in the development of separation processes. Porosity and surface area characteristics determine the selectivity of an adsorbent.

Catalyst

The active surface area and pore structure of catalysts affect production rates. By limiting pore size, a catalyst can selectively allow only molecules of desired sizes to enter and exit, resulting in the production of the desired product.

Aerospace

Surface area and porosity in heat shields and insulating materials impact weight and functionality.

Fuel Cells

Fuel cell electrodes require controlled porosity with a high surface area to achieve adequate power density.

Geoscience

Porosity is a crucial factor in groundwater hydrology and petroleum exploration, as it relates to the quantity of fluid a structure can contain and the effort required to extract it.

Filtration

Pore size, pore volume, pore shape, and pore tortuosity are of interest to filter manufacturers. Pore shape often has a more direct effect on filtration than pore size, as it strongly correlates with filtration performance and fouling.

Construction Materials

Diffusion, permeability, and capillary flow are essential in understanding the degradation processes in concrete, cement, and other construction materials.

Paper

The porosity of print media coating is significant in offset printing, impacting blistering, ink receptivity, and ink holdout.

Medical Implants

Surface area and porosity are critical factors in the functionality and weight of medical implants.

Software

Microactive for Autopore

Micromeritics AutoPore V Series Porosimeters

Image Credit: Micromeritics Instrument Corporation

Intelligent, Intuitive, Interactive:

The MicroActive software significantly enhances functionality, convenience, diagnostics, and data interpretation, setting a new benchmark for high-performance results in mercury porosimetry.

Method Wizard

Construct a method through an interactive, step-by-step script, simplifying method creation and introducing new users to the operation of the AutoPore V.

Mercury Density Calculation

In contrast to competitive systems that utilize mercury density only at ambient temperature, the AutoPore V automatically measures the actual mercury temperature for precise density calculations under operational conditions.

User-Defined Reports and Report Options

Effortlessly generate custom advanced reports tailored to your specific requirements using Python scripting. New report options enable automatic report conversion to PDF or spreadsheet formats.

Post-Analysis Parameter Change

Modify or correct analysis parameters (stem volume, maximum head pressure, pen constant) post-analysis, eliminating the need to rerun samples due to errors.

Reverberi Method Data Reduction

Access information on the distribution of pore shape. The method produces a three-dimensional array depicting cavity size and throat size versus volume.

Diagnostic Dashboard

Micromeritics AutoPore V Series Porosimeters

Image Credit: Micromeritics Instrument Corporation

Monitoring of essential system components in real-time to facilitate proactive maintenance and troubleshooting.

Enhanced Penetrometer Calibration

Micromeritics AutoPore V Series Porosimeters

Image Credit: Micromeritics Instrument Corporation

Streamlines penetrometer calibration by automating calculations, either gravimetrically or volumetrically.

Overlay Multiple Runs and Gas Adsorption Data

MicroActive for AutoPore V enables overlaying of up to 25 runs, with the added capability to import pore size distributions from gas adsorption isotherms. This feature allows for the presentation of analysis data, in the the micro- to macropore range, in a single report.

Intelligent Data Reporting

Automated warnings are generated when potentially questionable data is gathered.

Variety of Available Plots

Micromeritics AutoPore V Series Porosimeters

Image Credit: Micromeritics Instrument Corporation

Users can access plots for pore volume, pore area, and pore size, along with the capability to compute total intrusion volume, total pore (surface) area, median pore diameters, average pore diameters, bulk or envelope density, and apparent (skeletal) density.

Reports Include:

  • Summary
  • Tabular Report
  • Incremental Volume vs Pore Size/Particle Size/ Pressure
  • Cumulative Volume vs Pore Size/Particle Size/ Pressure
  • Cumulative Volume vs Pore Size/Particle Size/ Pressure
  • Incremental Volume vs Pore Size/Particle Size/ Pressure
  • Cumulative Area vs Pore Size/Particle Size/ Pressure
  • Differential Volume vs Pore Size/Particle Size/ Pressure
  • Log Difference Volume vs Pore Size/Particle Size/ Pressure
  • Differential Reference % Volume vs Pore Size/Particle Size/ Pressure
  • Out Spec. % Volume vs Pore Size/Particle Size/ Pressure
  • Material Compressibility
  • Cavity to Throat Size Ratio
  • Fractal Dimension
  • Mayer-Stowe Particle Size
  • Tortuousity
  • Permeability
  • Reverberi
  • Advanced Report System

Other Equipment by this Supplier

3Flex-Surface Characterization Analyzer

3Flex-Surface Characterization Analyzer

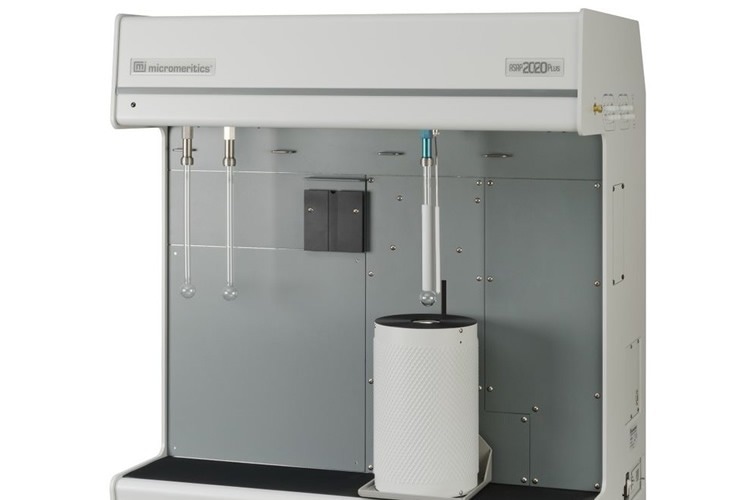

ASAP 2020 Plus Accelerated Surface Area and Porosimetry System

ASAP 2020 Plus Accelerated Surface Area and Porosimetry System
Micromeritics ASAP 2460 Surface Area and Porosity Analyzer

Micromeritics ASAP 2460 Surface Area and Porosity Analyzer
Micromeritics Gemini VII 2390 Series Surface Area Analyzers

Micromeritics Gemini VII 2390 Series Surface Area Analyzers
Micromeritics TriStar II Plus Surface Area Analyzer

Micromeritics TriStar II Plus Surface Area Analyzer

Terms

While we only use edited and approved content for Azthena answers, it may on occasions provide incorrect responses. Please confirm any data provided with the related suppliers or authors. We do not provide medical advice, if you search for medical information you must always consult a medical professional before acting on any information provided.

Your questions, but not your email details will be shared with OpenAI and retained for 30 days in accordance with their privacy principles.

Please do not ask questions that use sensitive or confidential information.

Read the full Terms & Conditions.

Provide Feedback
