The completely integrated hybrid-pixel electron detector from the DigitalMicrograph® software, calibrated for the most recent electron diffraction examinations, is called the Stela® Hybrid-Pixel Camera.
Features
Stela, the first fully integrated hybrid-pixel electron detector with DigitalMicrograph software for the most recent electron diffraction research, is now available. It employs DECTRIS hybrid-pixel electron technology, which uses electron counting to eliminate noise and on-the-fly digitizing for maximum dynamic range.
One Platform, Many Solutions
- Market-leading DigitalMicrograph software: Combines diffraction imaging, 4D STEM, and hybrid-pixel electron detection with ease
- Transforms delicate observations into brilliant insights: Examine and evaluate results in minutes to enhance the experiment and get the most comprehensive 4D STEM dataset possible
Diffraction Uncompromised
- Excellent dynamic range for 4D STEM: Captures both strong and weak reflections, allowing for the most recent diffraction studies
- Obtains a 4D cube at >16,000 pixels/s:
- Reduces drift and damage to specimens
- Covers a large sample area in a short period of time
- Improved imaging at low kV: Ideal for materials that require diffraction studies at <80 kV

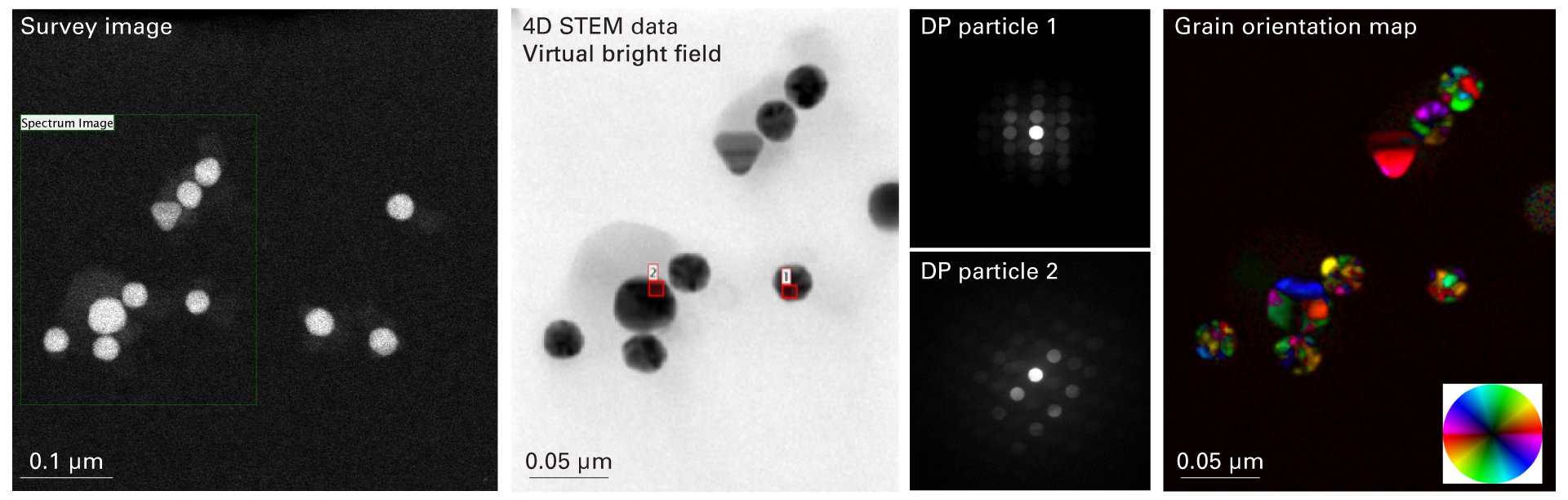

Depiction 4D STEM Diffraction Data Cube Collected by Using Stela Camera and STEMx System
4D STEM diffraction data cube. A 4D STEM diffraction data cube was collected using the Stela camera and STEMx system. Specimen: Au nanoparticles. Scan area: 176 × 218 pixels, Diffraction image size: 256 × 256 pixels. Dwell time: 5 ms. Color map showing grain orientations classified based on the angular position of the maximum diffraction peak per probe position using a DigitalMicrograph script. Image Credit: Gatan, Inc.
3D Visualization of the Reciprocal Space Reconstructed from MicroED by Using the Stela Camera
Reciprocal space reconstructed from continuous diffraction tomography data
Reciprocal space reconstructed from continuous diffraction tomography data. 3D visualization of the reciprocal space reconstructed from continuous diffraction tomography data (micro-ED) collected using the Stela camera in in-situ recording mode. Specimen: Tylenol crystal, diffraction image size: 512 × 512 pixels, exposure per frame: 5 ms, tilt range: ±70°, total acquisition time: 3 s. 3D reconstruction. Video Credit: Dr. dos Reis, Northwestern University.
Utilization of Low Voltage Electron Diffraction at High Speed to Solve Practical Materials Problems
Utilization of low voltage electron diffraction at high speed to solve practical materials problems
Utilization of low voltage electron diffraction at high speed to solve practical materials problems. This webinar shows examples of low-voltage, high-speed electron diffraction experiments using the Gatan Stela, a detector with a high-dynamic range, based on DECTRIS' fast hybrid-pixel technology, to study subtle structural changes. Video Credit: Gatan, Inc.
A Live Demonstration of Stela Hybrid Pixel Electron Detector for 4D STEM Diffraction
Live Virtual Workshop: Stela Hybrid Pixel Electron Detector for 4D STEM Diffraction
Live Virtual Workshop: Stela Hybrid Pixel Electron Detector for 4D STEM Diffraction. This comprehensive workshop features a presentation, a live microscope demonstration (including 4D STEM data acquisition and processing), and an open Q&A session. Video Credit: Gatan, Inc.
