The AvaLight-DH-S is Avantes’ most potent deuterium halogen source. The DH-S, like the DHc, is a combined deuterium and halogen light source capable of transmitting light in the UV/VIS/NIR spectrum, but it produces 35 times more halogen and up to 300 times more deuterium power.
The source features a significant 656 nm deuterium peak, which may reduce dynamic range (Avalight-DH-S-BAL is an option). It features a focusing lens assembly to maximize the fiber’s capabilities and size.
The AvaLight-D-S is a dedicated deuterium light source, ideal for UV measurements in the range of 190 to 400 nm. For experiments requiring even deeper UV wavelengths, the AvaLight-D-S-DUV variant extends the range down to 175 nm and provides twice the intensity at 200 nm compared to the standard model.
The AvaLight-DH-S output is suited for fibers or bundles up to 600 µm. For larger fibers, the focal point is manually adjusted to enhance light coupling into the fiber.
The AvaLight-D(H)-S comes with a built-in TTL shutter and a filter holder that accommodates filters up to 50 x 50 x 5.0 mm in size.

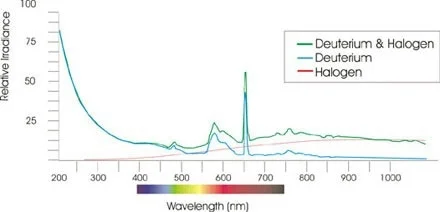

Spectral output AvaLight DH S. Image Credit: Avantes BV
Benefits
- Flexible in UV/VIS/NIR ranges
- Combined deuterium and halogen light source
- Powerful
- Deep-UV option is available
Product Information
Technical Data. Source: Avantes BV
| |
Deuterium (Deep UV)/
Long life |
Deuterium (Standard)/
Long life |
Halogen
Lamp |
| Wavelength range |
175-400 nm |
190-400 nm |
360-2500 nm |
| Warm-up time |
30 min |
30 min |
20 min |
| Lamp power |
78 W / 0.75 A |
78 W / 0.75 A |
5 W / 0.5 A |
| Lamp lifetime |
2000 hrs |
2000 hrs |
1000 hrs |
| Noise (AU) |
2x 10-5 |
2x 10-5 |
10-4 |
| Max. drift |
± 0.5%/hr |
± 0.5%/hr |
±0.1%/hr |
| Color temperature |
|
|
3000 K |
Optical power* in
200 µm fiber |
11 µW |
11 µW |
43 µW |
Optical power* in
600 µm fiber |
72 µW |
72 µW |
239 µW |
Optical power* in
1000 µm fiber |
206 µW |
206 µW |
354 µW |
| Power consumption |
90 Watt (190 Watt for
heating D-Lamp 4-5 sec.) |
90 Watt (190 Watt for
heating D-Lamp 4-5 sec.) |
90 Watt (190 Watt for
heating D-Lamp 4-5 sec.) |
| Power requirements |
100-240 VAC 50/60 Hz |
100-240 VAC 50/60 Hz |
100-240 VAC 50/60 Hz |
| Dimensions, weight |
315 x 165 x 140 mm,
ca. 5 kg |
315 x 165 x 140 mm,
ca. 5 kg |
315 x 165 x 140 mm,
ca. 5 kg |
*Total power for the specified wavelength range. For an overview of separate filters to install in the AvaLight-D-(H)-S, see AvaLight-HAL-S-Mini
Ordering Information. Source: Avantes BV
| |
|
| AvaLight-D-S |
Deuterium light source, 190-400 nm, incl. TTL shutter, -SR fibers needed |
| AvaLight-DH-S |
Deuterium-Halogen light source, 190-2500 nm, incl. TTL shutter, -SR fibers needed |
| AvaLight-D-S-DUV |
Deep UV deuterium light source, 175-400 nm, incl. TTL shutter, -SR fibers needed |
| AvaLight-DH-S-DUV |
Deep UV deuterium-halogen light source, 175-2500 nm, incl. TTL shutter, -SR fibers needed |
| IC-DB26-2 |
Interface cable AvaSpec-USB2 platform to AvaLight-D(H)S |
| AvaLight-D-B |
Replacement deuterium bulb for AvaLight-D/AvaLight DH light source |
| AvaLight-D-B-DUV |
Replacement deep UV deuterium bulb for AvaLight-D/AvaLight-DH light source |
| AvaLight-DH-B |
Replacement halogen bulb for AvaLight-DH light source |
| CUV-DA-DHS |
Direct attach cuvette holder for AvaLight-D(H)S |
