Bettersize Instruments’ BeVision S1 static image analyzer offers an innovative combination of light microscopy and image analysis. This instrument intuitively provides accurate shape and size distributions of either suspensions or powders.
With an objective magnification of up to 100x, the BeVision S1 efficiently records and analyzes particles as small as 1 μm in size.
The BeVision S1 static image analyzer offers a budget-friendly option for particle analysis and a range of features and benefits, including:
- A wide measurement range of 1 µm to 3000 µm
- Twenty-four particle shape and size parameters
- The capacity for both wet and dry measurement readings
- Models suitable for a range of applications
- Powerful software that reduces user workload
- Results that comply with ISO 9276-6
- Customizable reports for different evaluation requirements
How to Install and Operate BeVision S1
Video Credit: Bettersize Instruments Ltd.
Benefits of the Image Analysis Method
Each step of the image analysis process is easy to follow, from the capturing and identification of a particle, through to measuring their shape and size.
Image analysis can summarize results as a statistic that accurately provides distribution data based on particle size or shape.
Static Image Analysis
Static image analyzers incorporate precision microscopes and high-resolution cameras designed to obtain high-quality particle images.
Due to its sensitivity, it is possible to produce an estimate of the size of undersized particles using the static image analysis method.
Only a small sample volume - for example, a few micrograms of powder or a few drops of emulsion - is necessary to carry out a static image analysis.

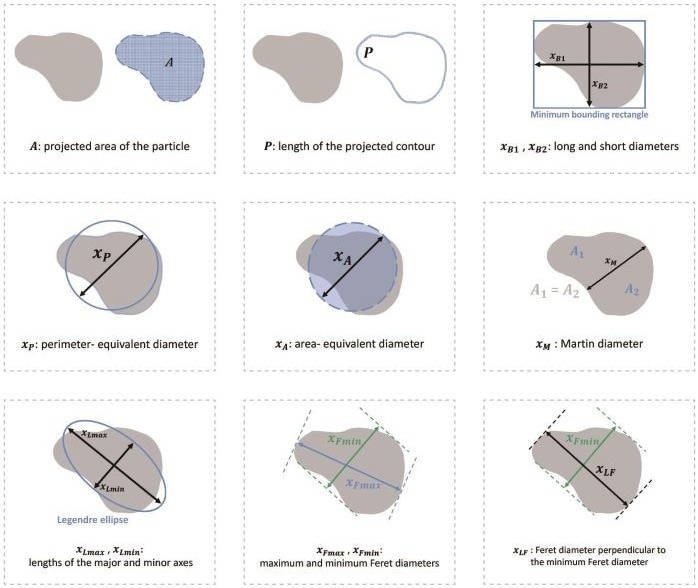

Size Parameters
Several size parameters can be accommodated, including:
- Equivalent diameters; for example, perimeter-equivalent diameter or area-equivalent diameter
- Legendre ellipse; for example, minor and major axes
- Feret diameters; for example, maximum and minimum Feret diameters, XLF (“length”)
- Martin diameters; for example, minimum and maximum Martin diameters
![BeVision S1 - Static Image Analyzer](https://d1otjdv2bf0507.cloudfront.net/images/equipments/EquipmentImage_2238_17206880050339086.jpg)
Image Credit: Bettersize Instruments Ltd.

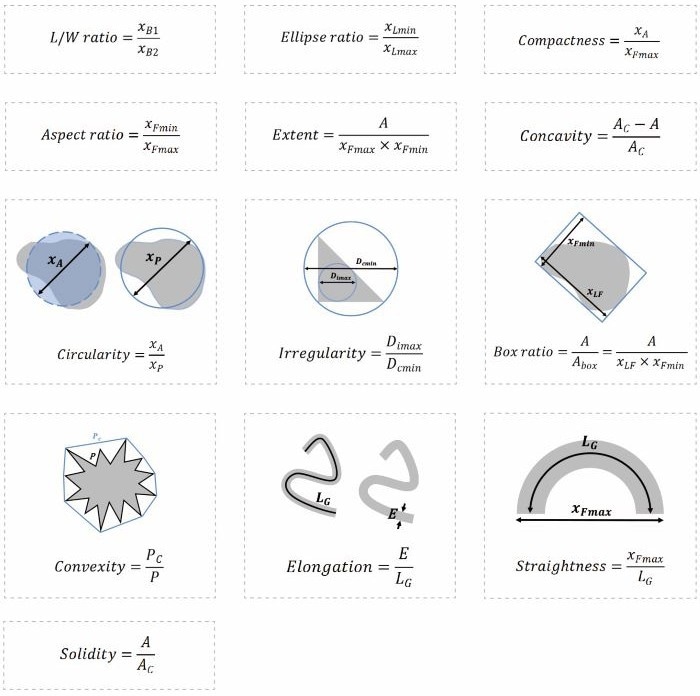

Shape Parameters
A number of shape parameters can be accommodated, including:
- Size difference in two directions: for example, ellipse ratio, aspect ratio, L/W ratio
- Elongated particle characteristics; for example, elongation, straightness
- Contour concavity; for example, concavity, convexity,solidity
- Round-likeness and rectangle-likeness; for example, circularity, compactness, irregularity, extent, and box ratio
![BeVision S1 - Static Image Analyzer](https://d1otjdv2bf0507.cloudfront.net/images/equipments/EquipmentImage_2238_17206880240606364.jpg)
Image Credit: Bettersize Instruments Ltd.

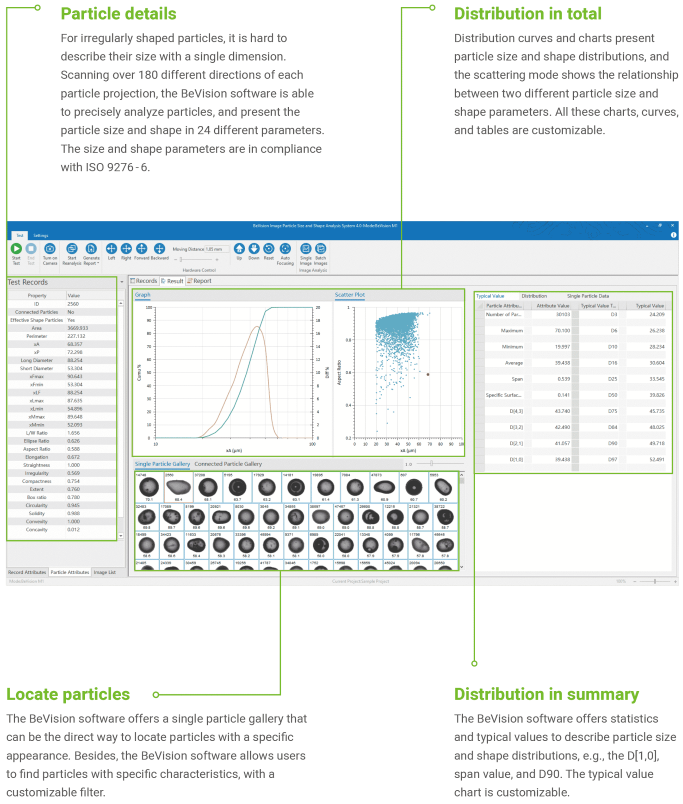

BeVision Software: Visualized Insights
![BeVision S1 - Static Image Analyzer](https://d1otjdv2bf0507.cloudfront.net/images/equipments/EquipmentImage_2238_17206880474963388.png)
Image Credit: Bettersize Instruments Ltd.
Applications
The BeVision S1 static image analyzer is ideal for use in various applications and sectors, including ceramics, automotive, mining and minerals, surface cleanliness, metal powders, paints, inks, coatings, abrasives, and agriculture.
![BeVision S1 - Static Image Analyzer](https://d1otjdv2bf0507.cloudfront.net/images/equipments/EquipmentImage_2238_17206880691721241.png)
Image Credit: Bettersize Instruments Ltd.
Specification
Source: Bettersize Instruments Ltd.
BeVision S1 |
General |
Measuring principle |
Static image analysis method |
Parameters |
Particle size, shape, and number |
Measurement performance |
Measuring range |
1 – 3,000 μm |
Typical measurement time |
3 to 5 min * |
Number of size/shape classes |
100 (user adjustable) |
Special functions |
SOP settings, analysis of saved images |
Main device |
Optical lens |
4×, 10×, 40×, 100× (with 40 × digital magnification) |
Camera |
5Mpix CMOS camera |
Light source |
White light LED, Halogen lamp (optional) |
System parameters |
Dimensions (L × W × H) |
20.0 × 42.0 × 55.0 cm |
Weight |
8.0 kg |
Supply voltage |
100 / 240 V, 50 / 60 Hz |
Software |
Conformity |
ISO 13321, ISO 9276 |
Reports |
Customizable reporting |
* Sample and sample preparation dependent |
Source: Bettersize Instruments Ltd.
BT - 910 powder disperser |
Dimensions (L × W × H) |
23.5 × 16.5 × 26.6 cm |
Weight |
4.3 kg |
Supply voltage |
100 / 240 V, 50 / 60 Hz |
Dispersion air pressure |
≤ - 60 kPa |
