Anton Paar’s Lyza 7000 FTIR spectrometer can measure hundreds of solid, liquid, or gaseous samples within a single compact instrument. It is the most dependable, easy-to-use FTIR spectrometer on the market, setting new industry standards across various application areas.
The instrument’s powerful software interface automates measurement, processing, and spectral analysis. It also includes a customizable measurement report, allowing users to collate the required data in a format tailored to them.
Key Features

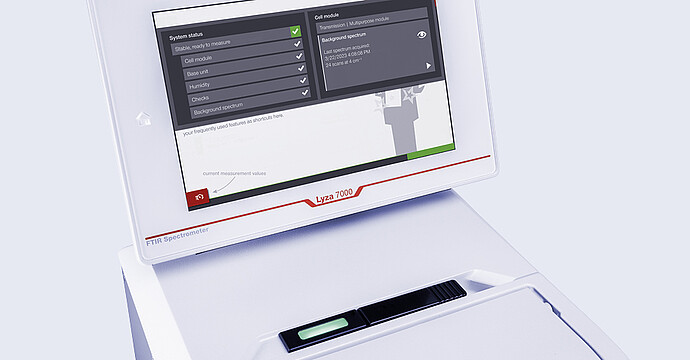

The Market’s Most Reliable FTIR Spectrometer
Image Credit: Anton Paar GmbH
- The Lyza 7000’s consistently accurate results are based on a foundation of rigorous testing and validation.
- Ongoing internal system monitoring ensures any possible issues are identified and rapidly resolved.
- A smart status LED light provides users with at-a-glance progress updates.
- Industry leaders have designed this FTIR spectrometer for optical analysis and quality control.

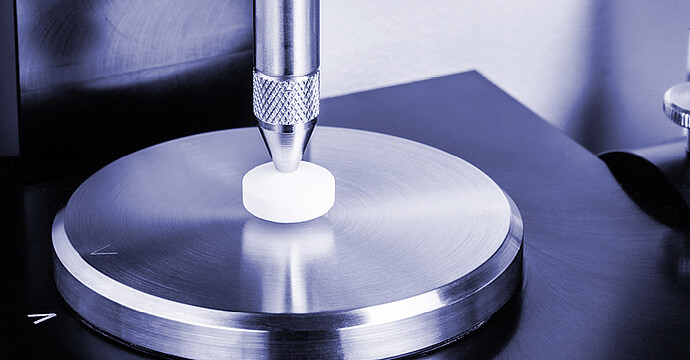

Solutions Tailored for Specific Industry Demands
Image Credit: Anton Paar GmbH
- Each application package can be tailored to meet specific requirements.
- The Lyza 7000’s modular cell concept can accommodate any sample type: solid, liquid, or gaseous.
- The instrument is fully compatible with an array of ATR and transmission cells, opening up its potential use in hundreds of applications.
- Users can meet key analytical needs without replacing the whole system.
- Measuring cell exchange is simple and automatically recognized by the instrument.
- Guided workflows and various valuable accessories mean users can intuitively perform measurements immediately.
- An adjustable touchscreen ensures a truly intuitive user experience.

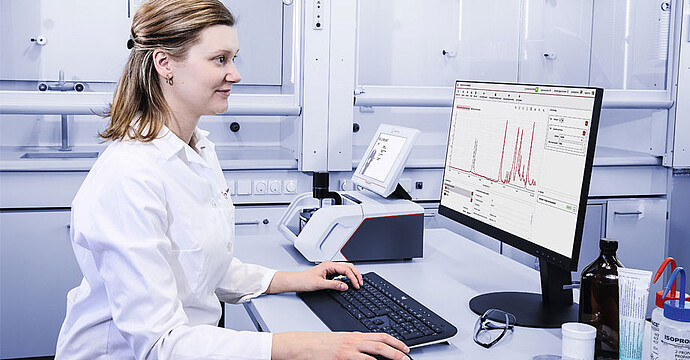

Powerful Spectral Libraries
Image Credit: Anton Paar GmbH
- Spectral libraries allow an FTIR spectrometer to directly identify and verify virtually any unknown substance or sample.
- Users can create a specialized library customized to specific application requirements.
- A range of industry-standard libraries is available in the embedded software, including S.T.Japan, Aldrich, and IChem.
- The Anton Paar factory library allows users to identify samples out-of-the-box.
- Users can perform incoming goods control, batch quality control, or essential R&D tasks, quickly and easily.

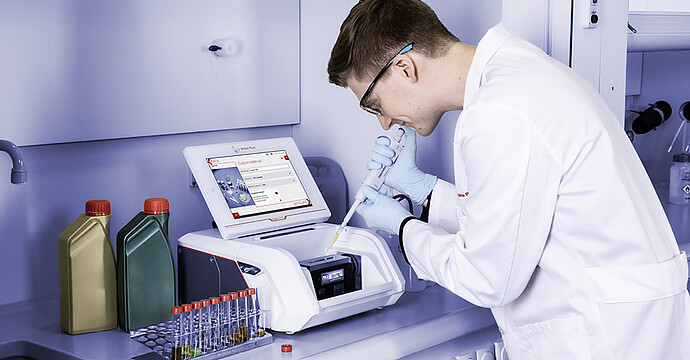

Boost Efficiency with Time, Space, and Cost Optimization
Image Credit: Anton Paar GmbH
- Automatic calibration is possible in mere minutes with the instrument’s internal polystyrene reference.
- The AP Connect platform can effectively streamline data management.
- The instrument boasts minimal bench space requirements due to its small footprint and touchscreen.
- ‘Eco Mode’ notably reduces energy consumption while prolonging the lifetime of core components.
- Cost efficiency is assured with no compromise on performance or quality.

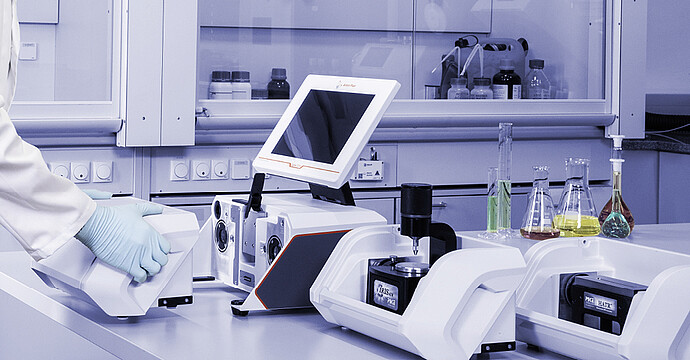

The Anton Paar Spectroscopy Suite: Efficiency Meets Compliance
Image Credit: Anton Paar GmbH
- The AP Spectroscopy Suite software allows the Lyza 7000 to achieve full compliance in regulated environments.
- The Suite meets key standards for seamless regulatory compliance, including 21 CFR Part 11 and EU GMP Vol. 4 Annex 11.
- Data integrity remains error-free, ensuring lifetime compliance in regulated environments.
- The Suite has been specifically designed to prevent errors before they occur, limiting the need for corrective actions based on assessments of audit trails.
- The Suite streamlines daily measurements by utilizing predefined workflows and settings, effectively removing complex spectroscopy tasks.
- Data is securely stored in an SQL database, ensuring no deletions can occur.
- The Suite facilitates accurate data submission, review, and approval, significantly streamlining necessary compliance processes.
Technical Specifications
Source: Anton Paar GmbH
| . |
. |
| Detector |
Pyroelectric DLaTGS detector |
| Optics |
Hermetically sealed aluminum casing with gold-coated mirrors, KBr windows and beamsplitter |
| Signal-to-noise ratio |
55,000:1 (1 min, 8 cm-1, 1,900 cm-1 to 2,250 cm-1) |
| Spectral range |
350 cm-1 - 7,500 cm-1 |
| Spectral resolution |
1.4 cm-1 - 16 cm-1 |
| Wavenumber accuracy |
<0.05 cm-1 @ 900 cm-1 - 3,000 cm-1 |
| Measurement time |
<30 seconds |
| Laser type |
Single mode Vertical Cavity Surface Emitting Laser (VCSEL) |
| Laser class |
Class 1, enclosed hermetically |
| IR Source |
SiC composite |
| Interferometer |
Permanently aligned cube corner interferometer |
| Desiccant |
Molecular sieve with color indicator, user-replaceable |
| Operating temperature range |
10 °C - 30 °C (non-condensing) |
| Instrument dimensions |
365 mm x 315 mm x 382 mm (D x W x H) |
| Cell compartment width |
152 mm |
| Weight |
12.8 kg |
| Power supply |
DC 24V, 40 W |
| Communication interfaces |
4 x USB 2.0 / CAN / Ethernet / Wi-Fi* |
| Data export formats |
.csv, .pdf, .spc |
| Data management |
AP Connect |
| Display |
10.1”, PCAP-Touchscreen, multi-touch |
| Controls |
Touchscreen, optional keyboard, mouse, and barcode reader |
| Internal storage |
32 GB |
| Spectral libraries |
Factory library, user-built, third-party options |
| Security |
User roles with customizable permissions, user password logins |
| Regulatory Compliance |
21 CFR Part 11 including installation, operation qualification and performance qualification (DQ /IQ/OQ/PQ)** |
*via external Wi-Fi stick
**only available in combination with Anton Paar Spectrocopy Suite
