Forge Nano, Inc., a leading ALD equipment provider and materials science company, today further expanded into the semiconductor market with the unveiling of its new Atomic Layer Deposition (ALD) product offering – TEPHRA™ – Forge Nano’s new single-wafer, ALD cluster platform. By offering single-wafer ALD coating quality at throughputs similar to the speed of batch systems, Forge Nano’s TEPHRA ™ will allow customers to produce best-in-class coatings at commercial scale with unrivaled precursor efficiency and speed.

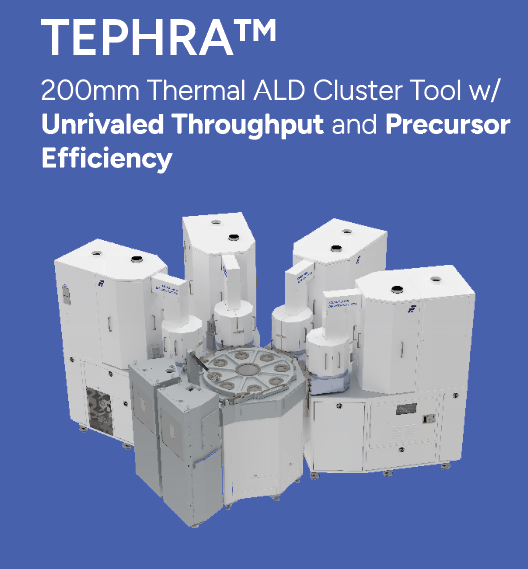

Image Credit: Forge Nano, Inc.
Powered by Forge Nano’s ALDx technology, which offers ultrathin, uniform, pinhole-free films with an unprecedented 10x throughput for single-wafer processing, TEPHRA is dedicated to the manufacturing of specialty semiconductor applications on 200mm wafers and below. With 100x efficient chemical use, rapid cycle times, increased yield, and low-risk manufacturing, TEPHRA is the only single-wafer cluster tool with commercial throughput speeds serving applications in advanced packaging, power semiconductor, radio frequency devices (RFD), microLEDs, microelectromechanical systems (MEMS), and more.
“TEPHRA is designed to unlock new capabilities to meet the growing demand of novel More-than-Moore market device applications that seek high-throughput ALD capabilities without sacrificing film qualities. Forge Nano will enable advanced device architectures with groundbreaking efficiency in the semiconductor space with our innovative ALD wafer tools that prioritize cost, performance and efficiency,” said Paul Lichty, CEO of Forge Nano. “With TEPHRA, Forge Nano is opening new coating solutions and opportunities for our proprietary coating techniques that address high aspect ratio structures, which have previously been underserved in the semiconductor industry.”
Forge Nano’s ALDx technology enables conformal coatings to scale to aspect ratios greater than 10:1. With a flagship all-ALD Metal Barrier Seed film application, TEPHRA offers nitride and metal depositions in high aspect ratio structures for advanced 3D integration applications, including through silicon and through glass vias. By moving beyond 10:1 aspect ratios, manufacturers can scale their packaging processes and reduce power consumption by overcoming common pitfalls of directional deposition technologies, including PEALD, which struggle with conformality and void formation.
TEPHRA is available in a range of configurations with the option for four-sided, six-sided and eight-sided cluster platforms. TEPHRA can process wafers up to 200 mm between 80 and 300°C with six process precursor channels and dedicated chambers for oxide, nitride and metal depositions. TEPHRA ™ also features Forge Nano’s patented CRISP technology, a suite of catalyzed thermal ALD processes that enable low temperature and hard-to-deposit materials without the need for plasma.
For more information on Forge Nano’s TEPHRA ™ product, visit the TEPHRA product page at: https://www.forgenano.com/products/tephra. SEMICON West 2024 attendees can stop by the Forge Nano booth (#133), located in the south exhibition hall, for additional product information and to discuss capabilities with our product specialists.
