A group of researchers from the Research Centre for Laser Extreme Manufacturing at the Ningbo Institute of Materials Technology and Engineering, Chinese Academy of Sciences, have created a laser solid-phase synthesis method to create graphene-shell encapsulated CrMnFeCoNi nanoparticles on a three-dimensional porous carbon support. This research was recently published in the journal Light: Science & Applications.

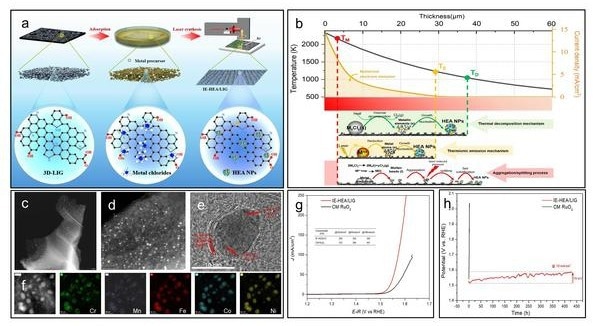

Laser solid-phase synthesis of graphene shell encapsulated HEA nanoparticles on a 3D porous carbon support and their catalytic performance. a. Illustrative diagram of the laser synthesis procedure, where the precursor salts adsorbed on 3D porous graphene structure supported by carbon paper, followed by pulsed laser irradiation to produce HEA nanoparticles loaded on graphene structure; b. Schematic diagram of the laser synthesis mechanism, involving laser-induced thermal decomposition of precursor salts, hot electron (from laser emission of graphene) reduction process, and metal aggregation and splitting process; c-f. TEM images and the STEM elemental mappings of the laser-synthesized HEA nanoparticles (scale bar = 50 nm), in which Figure e exhibits a HEA nanoparticle being embraced by several layers of graphene forming graphene shell-encapsulated HEA NP; g-h. OER performance of the laser-synthesized HEA NPs on carbon support in 1 M KOH electrolyte, showing that LSV plots and long-term stability at 10 mA/cm−2, compared with the commercial RuO2 catalysts. Image Credit: Yuxiang Liu, Jianghuai Yuan, Jiantao Zhou, Kewen Pan, Ran Zhang, Rongxia Zhao, Lin Li, Yihe Huang, Zhu Liu
The rapid synthesis of high-entropy alloy nanoparticles (HEA NPs) offers new opportunities for creating functional materials for various applications. However, while several methods have successfully produced HEA NPs, their practical use is limited by the stringent conditions typically required, such as high pressure, high temperature, controlled environments, and restricted substrate options.
The researchers said, “Different from laser ablation in liquid, the laser solid-phase synthesis technique is a bottom-up approach, based on the laser irradiation of mixed metal precursors in solid-phase adsorbed on a 3D porous structure of laser-induced graphene to produce HEA nanoparticles.”
They added, “1) the CrMnFeCoNi HEA nanoparticles are embraced by several graphene layers, forming graphene shell-encapsulated nanoparticles. 2) the synthesis can be achieved through mixed metal precursor adsorption, thermal decomposition, and reduction via electrons from laser-induced thermionic emission, and the synthesis only takes less than 1 ms; 3) this technique also presents high versatility, evidenced by the successful synthesis of several materials including CrMnFeCoNi oxide, sulfide, and phosphide nanoparticles.”
“4) the laser-synthesized graphene shell-encapsulated CrMnFeCoNi NPs on the carbon support exhibit excellent electrocatalytic activity towards oxygen evolution reaction with an overpotential of 293 mV at the current density of 10 mA/cm2 and exceptional stability over 428 hours in alkaline media, outperforming the commercial RuO2 catalyst and the relevant catalysts reported using other methods. The catalyst productivity is around 30g/h at a laser power of 35 W, which could be scaled up,” the team continued.
“Our strategy provides simplicity, generality, and tunability to synthesize phase-separation-free HEA nanoparticles which consist of immiscible elements. The graphene shell encapsulated HEA nanoparticles loaded on the carbon support can be directly used as 3D binder-free integrated electrodes, embodying the scalability of this synthesis technique. This method is economically feasible and technically viable to synthesize composition-tunable nanoparticles,” the group added.
“In addition, this technique may be applied as a rapid tool for high-throughput screening and data-driven discovery of HEA materials, in the development of catalysis and other applications,” the team concluded.
Journal Reference:
Liu, Y., et al. (2024) Laser solid-phase synthesis of graphene shell-encapsulated high-entropy alloy nanoparticles. Light Science & Applications. doi.org/10.1038/s41377-024-01614-y.
