The Vibratory Ball Mill for Grinding and Sieving in One Unit

Fine comminution and sieving in one unit!

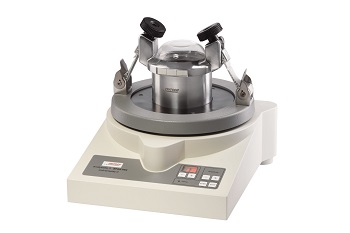

The FRITSCH Vibratory Micro Mill PULVERISETTE 0 is the ideal laboratory mill for fine comminution of medium-hard, brittle, moist or temperature-sensitive samples – dry or in suspension – as well as for homogenising of emulsions and pastes.

For perfect, loss-free grinding results in shortest times!

Ideal for:

• Chemical analysis: Electron microscopy
• Environmental research: Soil samples, comminution of botanical materials – also possible deep frozen
• Pharmaceuticals and medicine: Ophthalmological agents, gels, creams, extracts, drugs, pastes, dragées, tablets
• Biotechnology: Tissue samples, botanical matter
• Forensic analysis: Teeth, bones
• Materials technology: Pigments, precious materials, new materials
• RoHS: Mobile phone circuit boards, mobile phone cameras, mobile phone LCD glass panels, mobile phone keypads, electronic chips, LCD diffusion panels

Cryogenic grinding

For fast embrittlement of soft, slightly oily, fatty or moist materials for cryogenic grinding, we offer the FRITSCH cryo-box: Simply insert the filled grinding set into the cryo-box and fill it with liquid nitrogen with this method even extremely difficult-to- grind samples can be ground down to analysis fineness. And the thick insulation ensures a particularly efficient use of coolant.

Typically FRITSCH!

Grinding and sieving in one unit

For dry and wet sieving, the FRITSCH PULVERISETTE 0 can be converted to a Vibratory Sieve Shaker for quantitative particle size analysis of solids (measuring range 32 μm – 63 μm) and suspensions (measuring range 20 μm – 10 mm) by simply inserting corresponding sieves. All related information can be found at www.fritsch.de in the product area Vibratory Sieve Shakers.

Simply clever!

Features overview

• Max. feed size 5 mm, max. sample quantity 10 ml, final fineness 10 μm
• Effective comminution in a narrow, homogeneous particle size range
• Loss-free grinding in a closed vessel – dry or in suspension
• Window for observing the grinding progress
• Cryogenic grinding and simple embrittling in the cryo-box
• Mortars and grinding balls in 6 different materials available
• Modular system for simple conversion to dry or wet sieving
• Grinding bowl oscillations 3,000 – 3,600 oscillations/min at 1 – 3 mm amplitude
• Adjustable oscillation amplitude for easy adaption of the vibration energy to the grinding sample

Up-dated information on the whole FRITSCH range for efficient sample preparation at www.fritsch.de.
