A recent study published in Small introduced electrochemical scanning microwave microscopy (EC-SMM), a technique that enables high-resolution local measurements of electrochemical properties in materials. The research focused on two-dimensional (2D) NiCo-layered double hydroxides (NiCo-LDH), known for their catalytic performance and energy storage capabilities.
This method provides new insights into nanoscale energy storage mechanisms, aiding in the design of more efficient electrochemical systems.

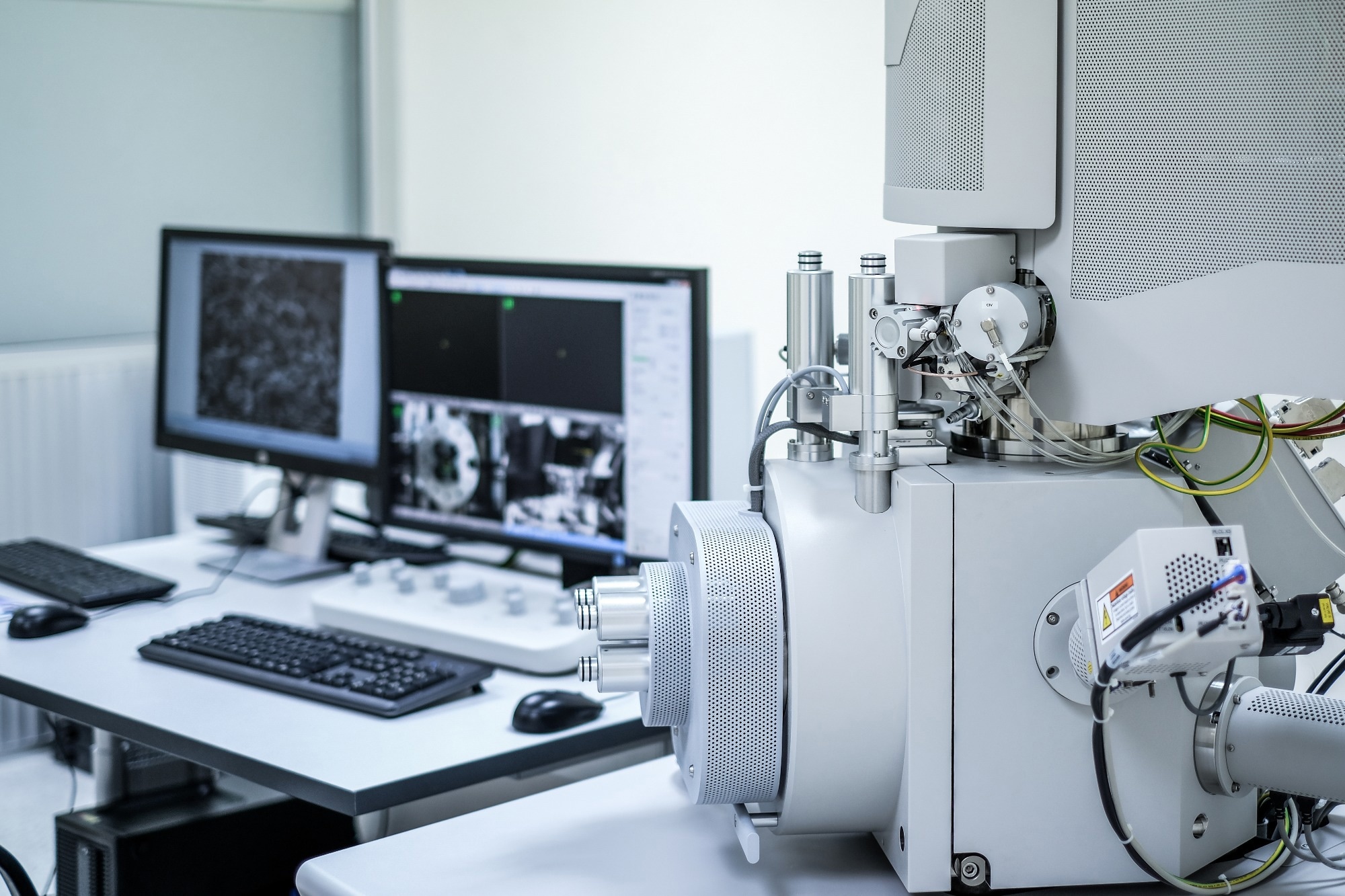

Image Credit: Anucha Cheechang/Shutterstock.com
Background
Traditional electrochemical characterization techniques often average responses over large surface areas, making it difficult to study localized phenomena crucial for optimizing material performance. Scanning probe techniques, such as scanning tunneling microscopy (STM) and electrochemical scanning tunneling microscopy (EC-STM), have improved resolution but still face limitations in sensitivity and spatial precision.
EC-SMM addresses these challenges by using microwave frequencies to measure electrochemical properties with nanoscale resolution. Applied to 2D materials like NiCo-LDH, this technique enables detailed modeling of ion dynamics and redox processes, enhancing our understanding of energy materials' functionality and reactivity.
The Current Study
EC-SMM combines microwave impedance sensing with electrochemical techniques, achieving nanometer-scale spatial resolution. Operating at 2.7 GHz, it probes electrochemical activity using a specialized scanning probe setup. A bias tee linked to a vector network analyzer (VNA) transmits and receives microwave signals while maintaining a stable electrochemical potential. This setup captures localized capacitive and conduction-related currents in response to a small oscillating electric potential, similar to electrochemical impedance spectroscopy (EIS).
In the study, NiCo-LDH flakes were deposited on highly ordered pyrolytic graphite (HOPG) substrates and immersed in an aqueous KOH electrolyte. EC-SMM measured electrochemical currents while simultaneously acquiring topographic data, providing a correlation between structural and electrochemical properties.
Results and Discussion
The application of EC-SMM to NiCo-LDH flakes revealed important insights into local electrochemical activity and charge intercalation. The mapping of electrochemical activity showed significant heterogeneity across the flakes, with higher catalytic activity observed at the edges compared to the basal planes. This edge activity is critical for facilitating redox reactions and ion intercalation.
The study also examined ion diffusion and migration within the flake structure. Findings suggest that charge intercalation begins at the edges and gradually moves toward the center, indicating a slow diffusion process. This highlights the role of material structure in determining electrochemical performance. By integrating numerical modeling with experimental data, researchers were able to clarify the kinetic processes that govern these nanoscale electrochemical activities.
Additionally, capacitance measurements across different flake regions confirmed localized electrochemical impedance variations. The results emphasize the importance of tailoring surface properties to enhance energy storage, suggesting that optimizing morphology and edge structures could significantly improve material performance.
Conclusion
This study demonstrates the effectiveness of EC-SMM in characterizing electrochemical properties at the nanoscale. The insights gained from NiCo-LDH flakes deepen our understanding of localized electrochemical behaviors and provide valuable information for optimizing materials in energy storage applications. By identifying active sites and elucidating charge intercalation processes, EC-SMM establishes itself as a powerful tool for advancing electrochemical energy storage technologies.
Continued research using this technique will help uncover complex dynamics in advanced materials, driving further progress in electrochemical energy storage and related fields.
Journal Reference
Awadein M., et al. (2025). Electrochemical scanning microwave microscopy reveals ion intercalation dynamics and maps active sites in 2D catalyst. Small 2500043. DOI: 10.1002/smll.202500043, https://onlinelibrary.wiley.com/doi/10.1002/smll.202500043
