It is still unclear what the impact is on humans, animals and plants of synthetic nanomaterials released into the environment or used in products. It’s very difficult to detect these nanomaterials in the environment since the concentrations are so low and the particles so small. Now the partners in the NanoUmwelt project have developed a method that is capable of identifying even minute amounts of nanomaterials in environmental samples.

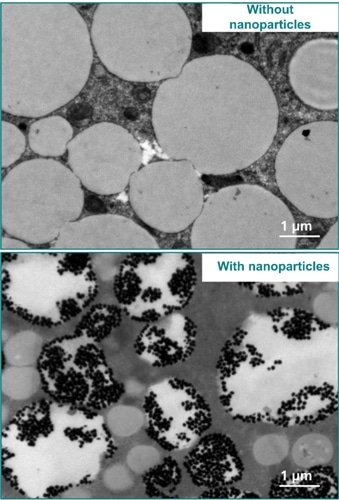

Detail of a microscopic image of a human lipid cell: untreated at the top, treated with gold nanoparticles at the bottom. The particles accumulate in the lipid droplets of the cell. © Photo Fraunhofer IBMT
Tiny dwarves keep our mattresses clean, repair damage to our teeth, stop eggs sticking to our pans, and extend the shelf life of our food. We are talking about nanomaterials – “nano” comes from the Greek word for “dwarf”. These particles are just a few billionths of a meter small, and they are used in a wide range of consumer products. However, up to now the impact of these materials on the environment has been largely unknown, and information is lacking on the concentrations and forms in which they are present there. “It’s true that many laboratory studies have examined the effect of nanomaterials on human and animal cells. To date, though, it hasn’t been possible to detect very small amounts in environmental samples,” says Dr. Yvonne Kohl from the Fraunhofer Institute for Biomedical Engineering IBMT in Sulzbach.
A millionth of a milligram per liter
That is precisely the objective of the NanoUmwelt project. The interdisciplinary project team is made up of eco- and human toxicologists, physicists, chemists and biologists, and they have just managed to take their first major step forward in achieving their goal: they have developed a method for testing a variety of environmental samples such as river water, animal tissue, or human urine and blood that can detect nanomaterials at a concentration level of nanogram per liter (ppb – parts per billion). That is equivalent to half a sugar cube in the volume of water contained in 1000 competition swimming pools. Using the new method, it is now possible to detect not just large amounts of nanomaterials in clear fluids, as was previously the case, but also very few particles in complex substance mixtures such as human blood or soil samples. The approach is based on field-flow fractionation (FFF), which can be used to separate complex heterogeneous mixtures of fluids and particles into their component parts – while simultaneously sorting the key components by size. This is achieved by the combination of a controlled flow of fluid and a physical separation field, which acts perpendicularly on the flowing suspension.
For the detection process to work, environmental samples have to be appropriately processed. The team from Fraunhofer IBMT’s Bioprocessing & Bioanalytics Department prepared river water, human urine, and fish tissue to be fit in the FFF device. “We prepare the samples with special enzymes. In this process, we have to make sure that the nanomaterials are not destroyed or changed. This allows us to detect the real amounts and forms of the nanomaterials in the environment,” explains Kohl. The scientists have special expertise when it comes to providing, processing and storing human tissue samples. Fraunhofer IBMT has been running the “German Environmental Specimen Bank (ESB) – Human Samples” since January 2012 on behalf of Germany’s Environment Agency (UBA). Each year the research institute collects blood and urine samples from 120 volunteers in four cities in Germany. Individual samples are a valuable tool for mapping the trends over time of human exposure to pollutants. “In addition, blood and urine samples have been donated for the NanoUmwelt project and put into cryostorage at Fraunhofer IBMT. We used these samples to develop our new detection method,” says Dr. Dominik Lermen, manager of the working group on Biomonitoring & Cryobanks at Fraunhofer IBMT. After approval by the UBA, some of the human samples in the ESB archive may also be examined using the new method.
Developing new cell culture models
Nanomaterials end up in the environment via different pathways, inter alia the sewage system. Human beings and animals presumably absorb them through biological barriers such as the lung or intestine. The project team is simulating these processes in petri dishes in order to understand how nanomaterials are transported across these barriers. “It’s a very complex process involving an extremely wide range of cells and layers of tissue,” explains Kohl. The researchers replicate the processes in a way as realistic as possible. They do this by, for instance, measuring the electrical flows within the barriers to determine the functionality of these barriers – or by simulating lung-air interaction using clouds of artificial fog. In the first phase of the NanoUmwelt project, the IBMT team succeeded in developing several cell culture models for the transport of nanomaterials across biological barriers. IBMT worked together with the Fraunhofer Institute for Molecular Biology and Applied Ecology IME, which used pluripotent stem cells to develop a model for investigating cardiotoxicity. Empa, the Swiss partner in the project, delivered a placental barrier model for studying the transport of nanomaterials between mother and child.
Next, the partners want to use their method to measure the concentrations of nanoparticles in a wide variety of environmental samples. They will then analyze the results obtained so as to be in a better position to assess the behavior of nanomaterials in the environment and their potential danger for humans, animals, and the environment. “Our next goal is to detect particles in even smaller quantities,” says Kohl. To achieve this, the scientists are planning to use special filters to remove distracting elements from the environmental samples, and they are looking forward to develop new processing techniques.
